Media System Monitor/DVD C4 (Headliner) 10 Way

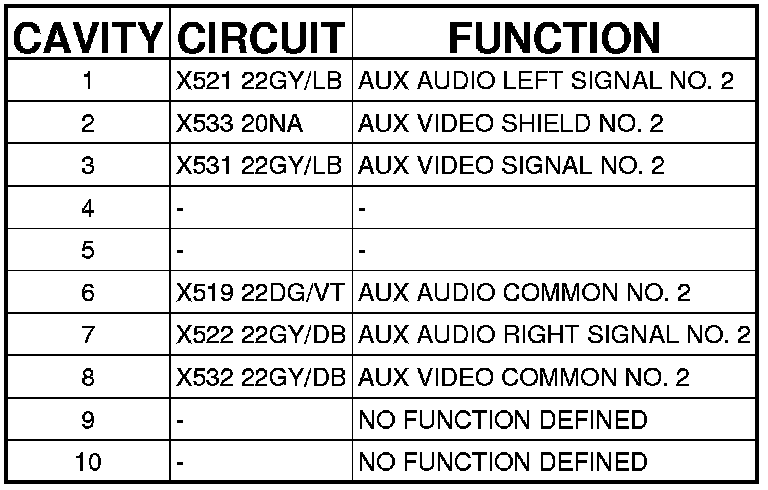

Connector C4 - (HEADLINER) 10 WAY




MONITOR-DVD - (HEADLINER) 10 WAY
