Indicator Lamp Identification

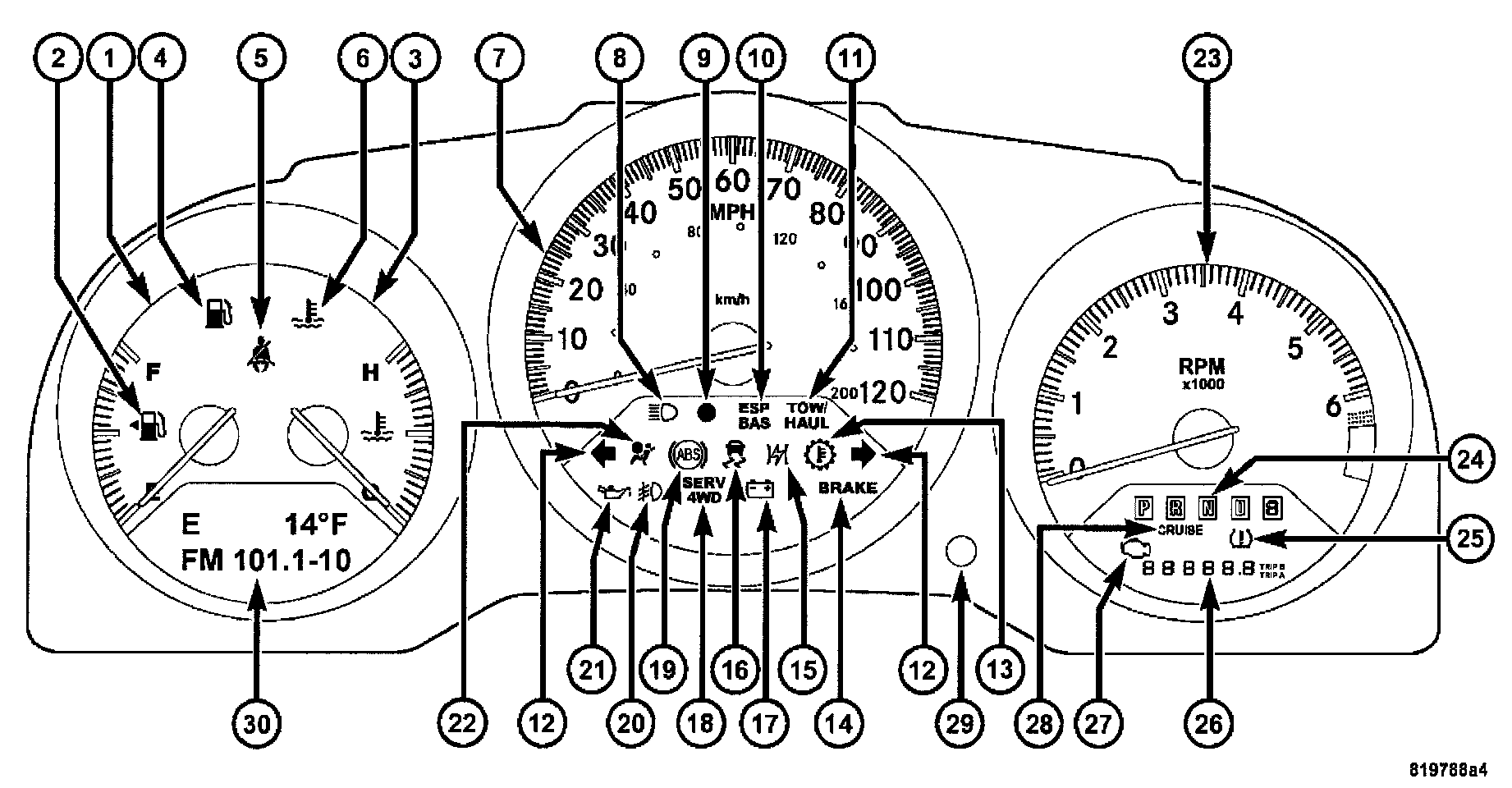

Instrument Cluster:

Warning Symbols:

1. Fuel Gauge
2. Fuel Cap Indicator
3. Temperature Gauge
4. Low Fuel Warning Light
5. Seat belt Reminder Light
6. Coolant Temperature Warning Light
7. Speedometer
8. High Beam Indicator
9. Security Alarm System Indicator Light - If Equipped
10. Electronic Stability Program (ESP) Warning Light/Brake Assist System (BAS) Warning Light - If Equipped
11. TOW/HAUL Indicator Light - If Equipped
12. Turn Signal Indicator Light
13. Transmission Temperature Warning Light - If Equipped
14. Brake Warning Light
15. Electronic Throttle Control (ETC) Warning Light - If Equipped
16. Electronic Stability Program (ESP) Indicator Light/Traction Control System (TCS) Indicator Light - If Equipped
17. Voltage Light
18. SERV (Service) 4WD Indicator - If Equipped
19. Anti-Lock Brake Warning Light
20. Front Fog Light Indicator - If Equipped
21. Oil Pressure Warning Light
22. Airbag Warning Light
23. Tachometer
24. Transmission Range Indicator
25. Tire Pressure Monitoring Telltale Light - If Equipped
26. Odometer/Trip Odometer
27. Malfunction Indicator Light
28. Cruise Indicator Light - If Equipped
29. Odometer/Trip Odometer Reset Button
30. Compass/Trip Computer or Electronic Vehicle Information Center (EVIC) Display - If Equipped
