Driver Airbag Squib 2 (Sensor Side)
Driver Airbag Squib 2 (Sensor Side)

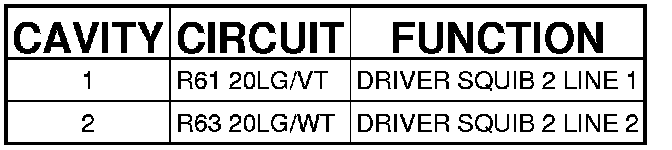

Connector - (SENSOR SIDE)

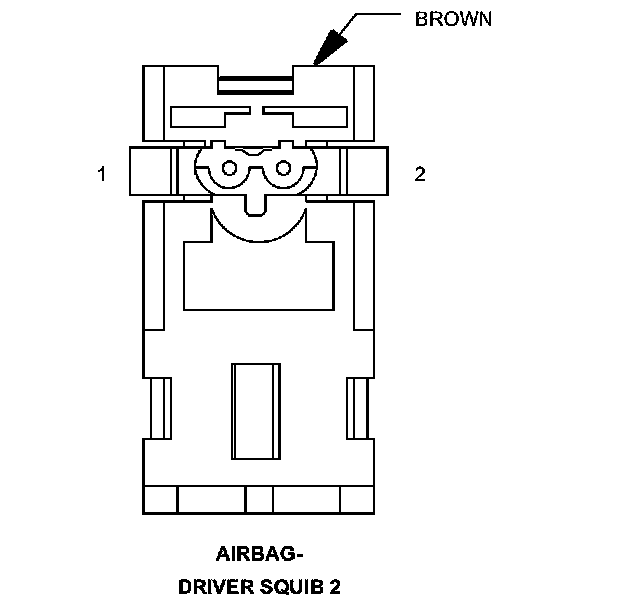

AIRBAG-DRIVER SQUIB 2 - (SENSOR SIDE)
