C108 (6.7L Diesel A/T) (Transmission Side) 12 Way

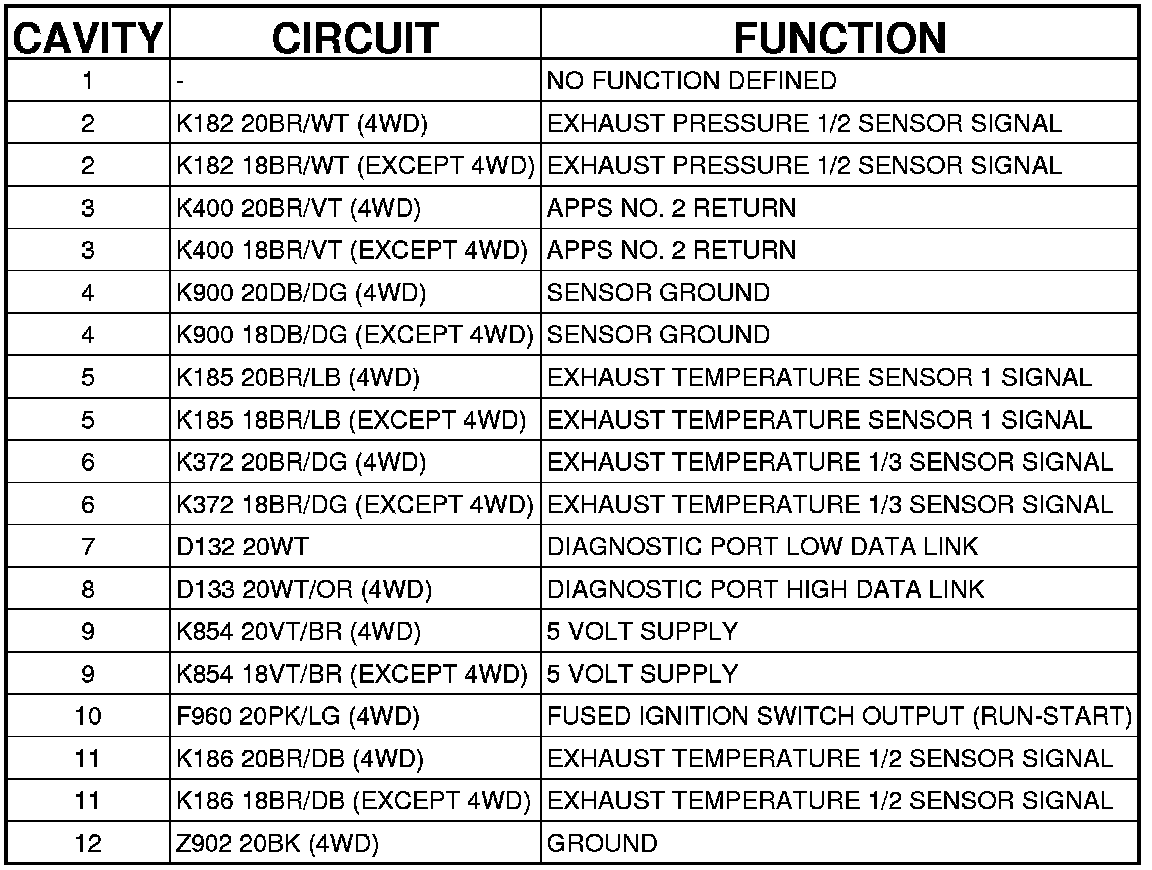

Connector (6.7L DIESEL A/T) - (TRANSMISSION SIDE) 12 WAY

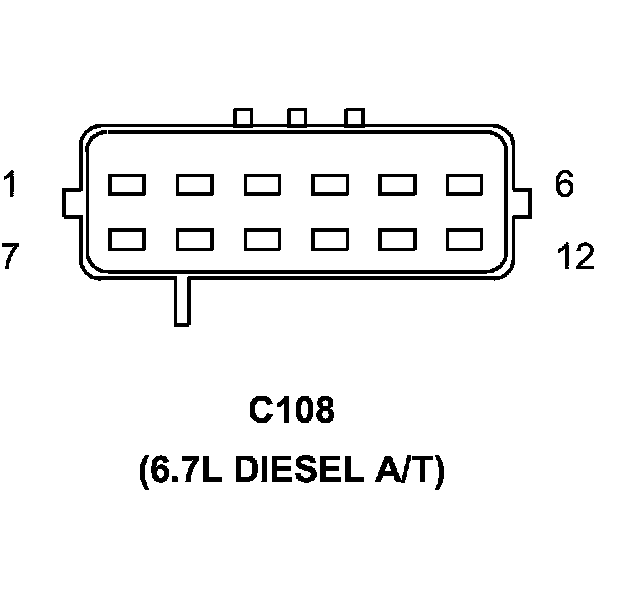

C108 (6.7L DIESEL A/T) - (TRANSMISSION SIDE) 12 WAY
