C130 (6.7L A/T) (Transmission Side) 43 Way
C130 (6.7L A/T) (Transmission Side) 43 Way

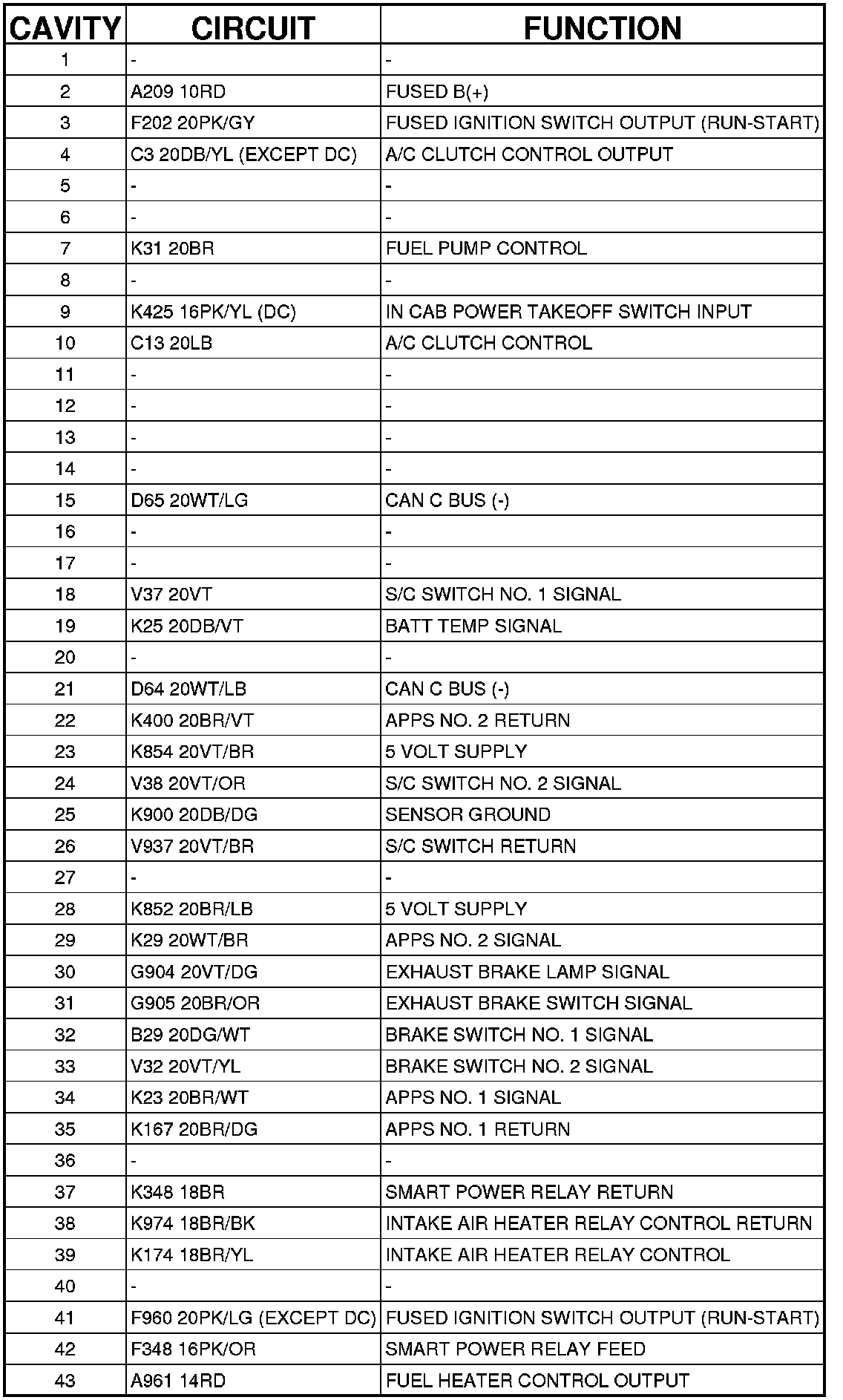

Connector (6.7L A/T) - (TRANSMISSION SIDE) 43 WAY
C130 (6.7L A/T) - (TRANSMISSION SIDE) 43 WAY
