C305 (Driver Door Side) 16 Way

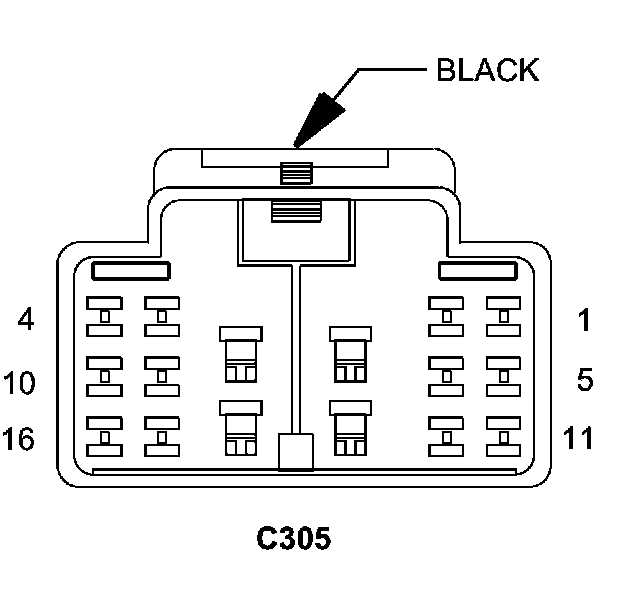

Connector - (DRIVER DOOR SIDE) 16 WAY

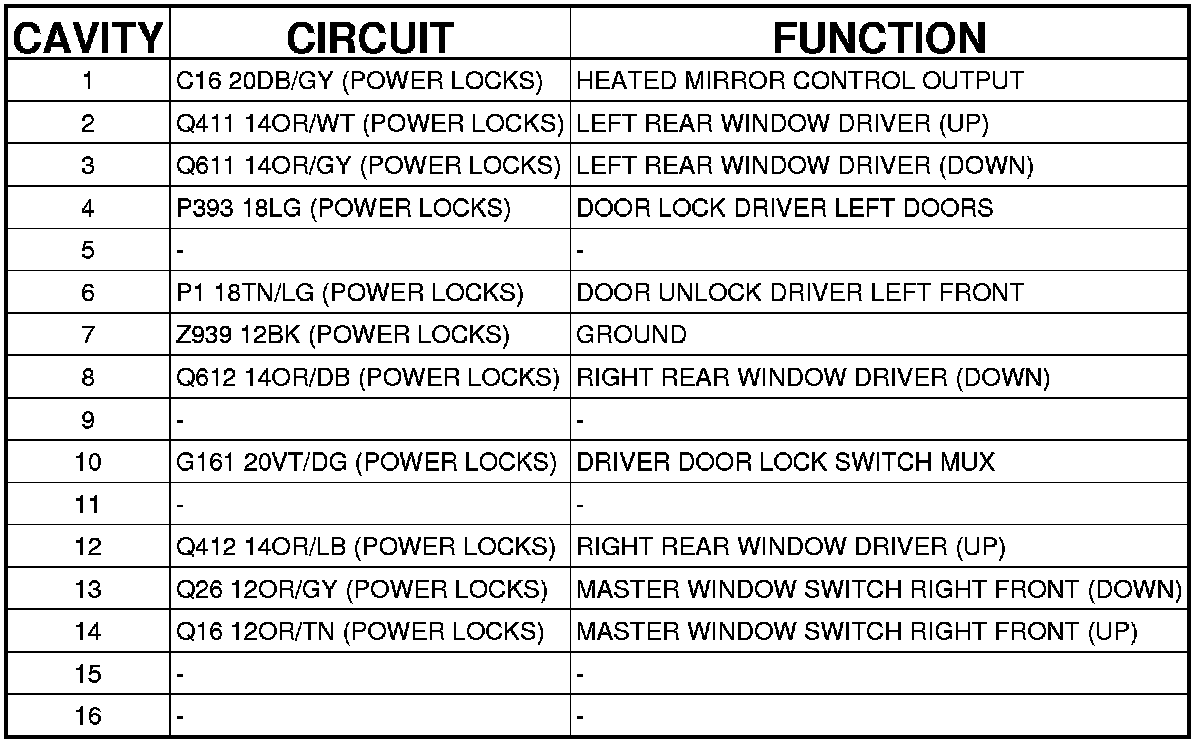

C305 - (DRIVER DOOR SIDE) 16 WAY
