Dodge or Ram Truck
>>
2009
>>
RAM 4500 Chassis Cab Truck 2WD L6-6.7L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cruise Control Switch
>>
Left Speed Control Switch (Steering Wheel) 3 Way
Left Speed Control Switch (Steering Wheel) 3 Way

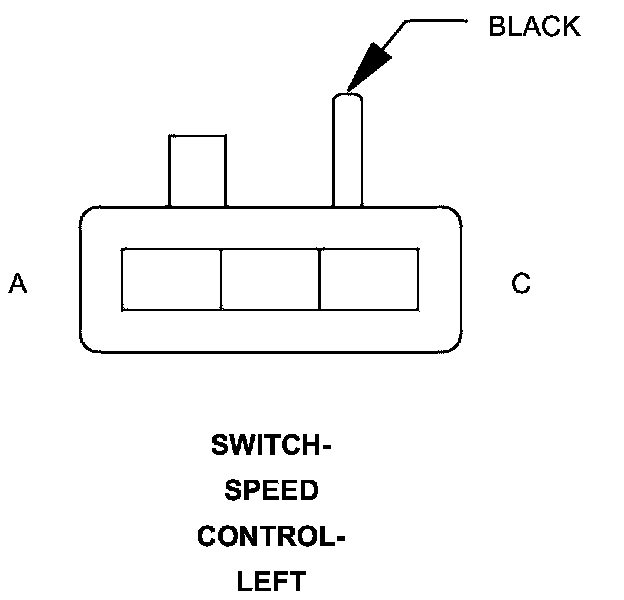

Connector - (STEERING WHEEL) 3 WAY

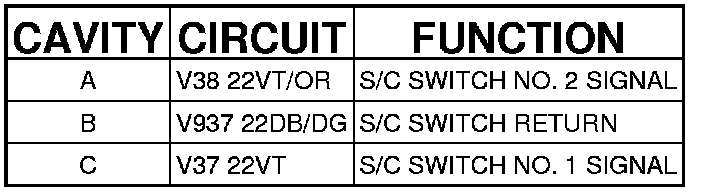

SWITCH-SPEED CONTROL-LEFT - (STEERING WHEEL) 3 WAY
