Fuel Injector 4 (Diesel) 2 Way

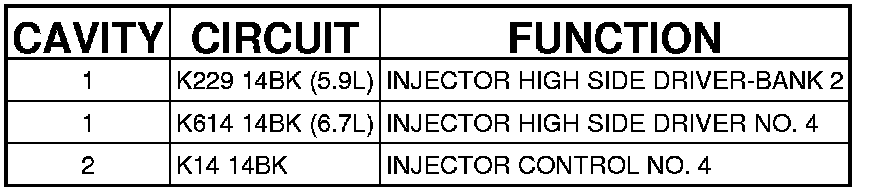

Connector (DIESEL) - (ENGINE) 2 WAY

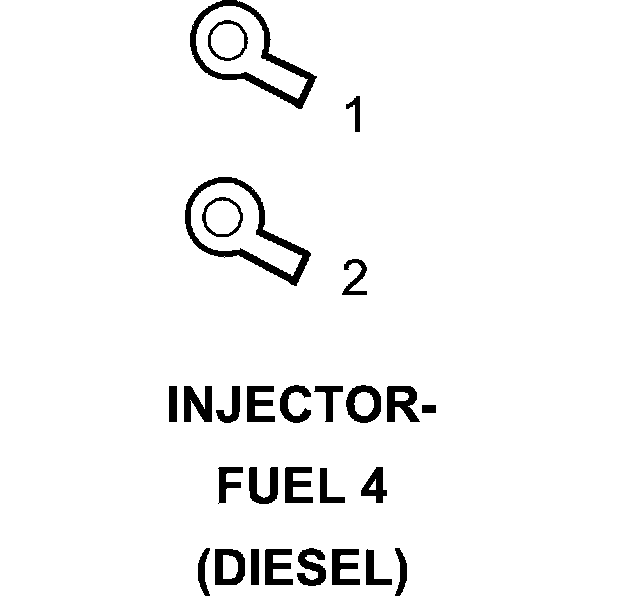

INJECTOR-FUEL 4 (DIESEL) - (ENGINE) 2 WAY
