Home >> Dodge or Ram Truck >> 2009 >> RAM 4500 Chassis Cab Truck 2WD L6-6.7L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuel Pump >> System Diagram

System Diagram

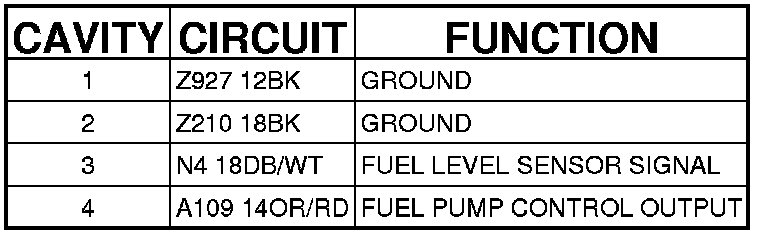

Connector - (CHASSIS) 4 WAY

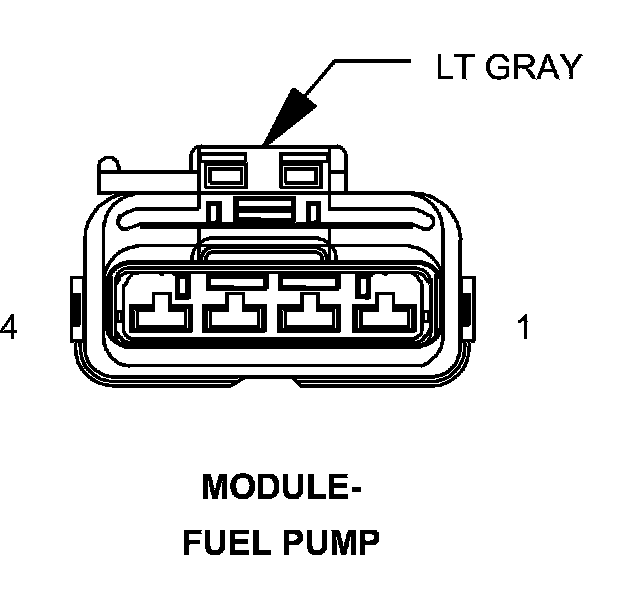

MODULE-FUEL PUMP - (CHASSIS) 4 WAY
