Cluster C4 (Instrument Panel) 16 Way
Cluster C4 (Instrument Panel) 16 Way

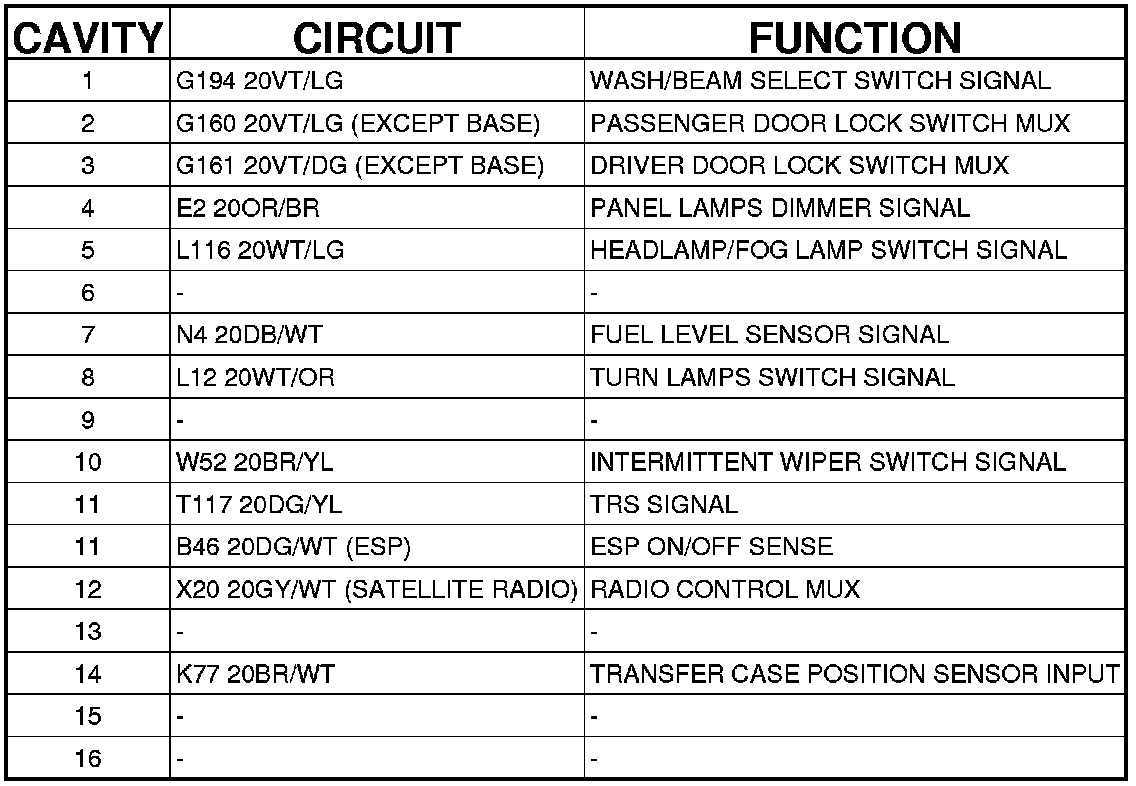

Connector C4 - (INSTRUMENT PANEL) 16 WAY

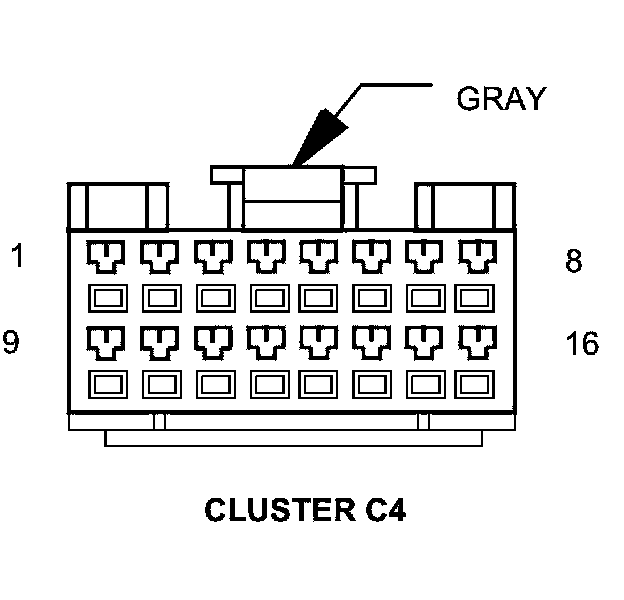

CLUSTER - (INSTRUMENT PANEL) 16 WAY
