Home
>>
Dodge or Ram Truck
>>
2009
>>
RAM 4500 Chassis Cab Truck 2WD L6-6.7L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Motor
>>
Left Rear Window Motor (Rear Door) 2 Way
Left Rear Window Motor (Rear Door) 2 Way

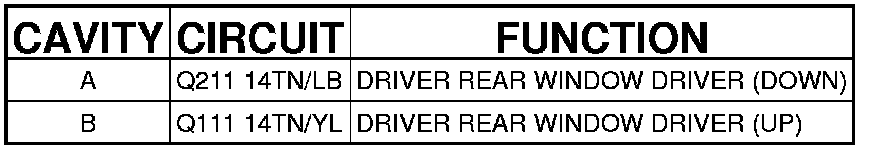

Connector - (REAR DOOR) 2 WAY

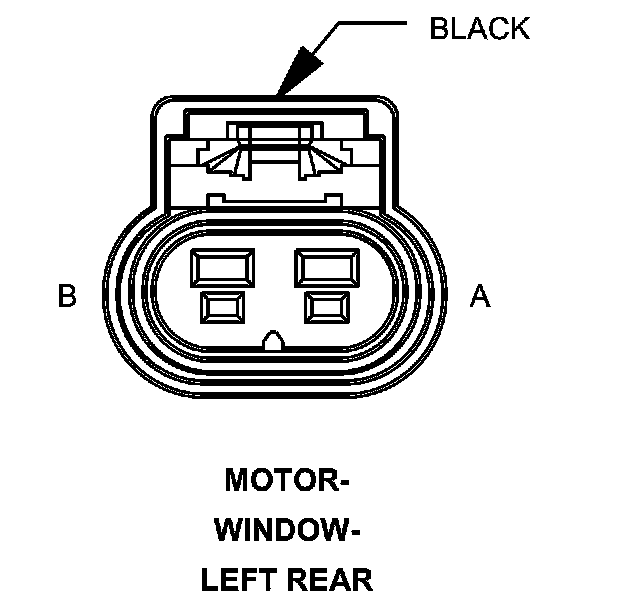

MOTOR-WINDOW-LEFT REAR - (REAR DOOR) 2 WAY
