Rear ABS Wheel Speed Sensor (Chassis) 2 Way
Rear ABS Wheel Speed Sensor (Chassis) 2 Way

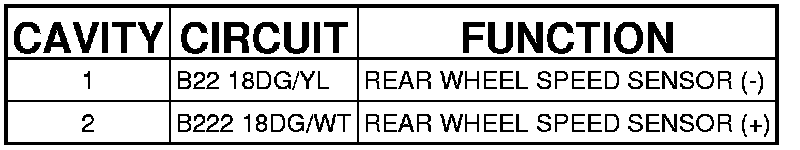

Connector - (CHASSIS) 2 WAY

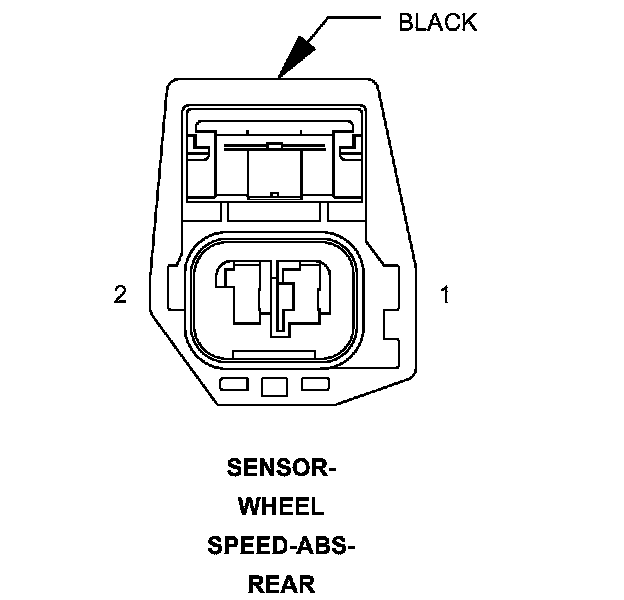

SENSOR-WHEEL SPEED-ABS-REAR - (CHASSIS) 2 WAY
