B165D

B165D-PARK LAMP CONTROL CIRCUIT HIGH

For a complete wiring diagram, refer to the Wiring Information Electrical Diagrams.

- When Monitored:
When the Park Lamps are active.

- Set Condition:
When the Totally Integrated Power Module (TIPM) detects a short to voltage in the Fused Park Lamp Feed circuit.





1. TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
2. Clear all TIPM DTCs.
3. Turn the Park Lamps on.
4. With the scan tool, read the DTCs.

Does the scan tool display B165D-PARK LAMP CONTROL CIRCUIT HIGH?

Yes

- Go To 2

No

- Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

2. CHECK THE (L7) FUSED PARK LAMP FEED CIRCUIT FOR A SHORT TO VOLTAGE




1. Turn the ignition off.
2. Disconnect the TIPM C9 harness connector.
3. Turn the ignition on.

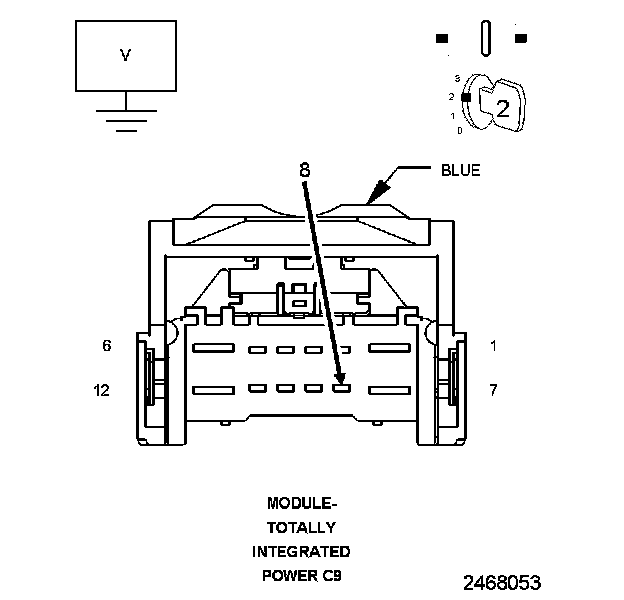

4. Measure the voltage of the (L7) Fused Park Lamp Feed circuit in the TIPM C9 harness connector.

Is any voltage present?

Yes

- Repair the short to voltage in the (L7) Fused Park Lamp Feed circuit.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Go To 3

3. CHECK THE (L70) FUSED PARK LAMP FEED CIRCUIT FOR A SHORT TO VOLTAGE

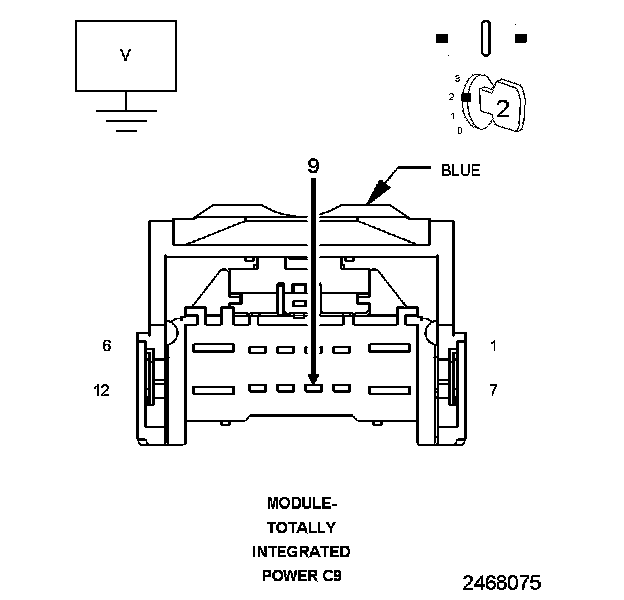

1. Measure the voltage of the (L70) Fused Park Lamp Feed circuit in the TIPM C9 harness connector.

Is any voltage present?

Yes

- Repair the short to voltage in the (L70) Fused Park Lamp Feed circuit.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Go To 4

4. CHECK THE (L678) FUSED PARK LAMP FEED CIRCUIT FOR A SHORT TO VOLTAGE




1. Measure the voltage of the (L678) Fused Park Lamp Feed circuit in the TIPM C9 harness connector.

Is any voltage present?

Yes

- Repair the short to voltage in the (L678) Fused Park Lamp Feed circuit.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Replace the TIPM.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
