B1405

B1405-FRONT RIGHT AUDIO SPEAKER OUTPUT CIRCUIT LOW

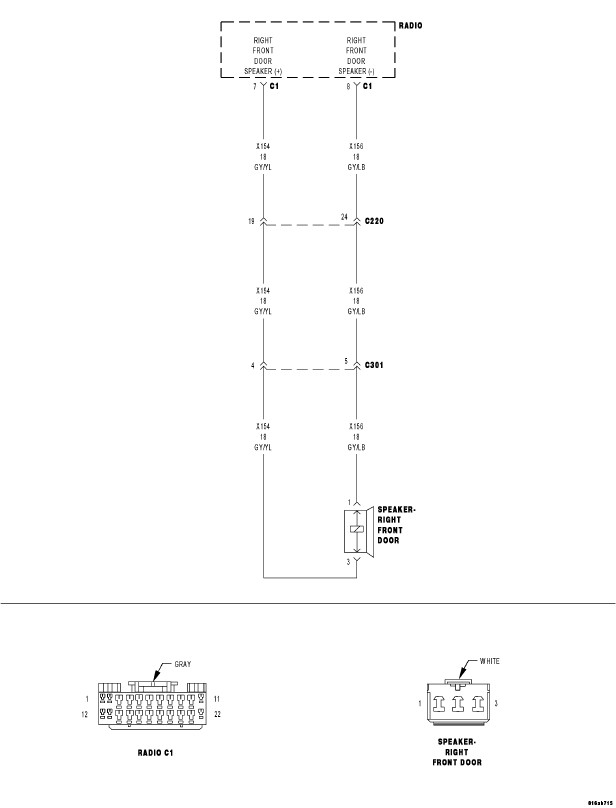

For a complete wiring diagram, refer to the Wiring Information Electrical Diagrams.

- When Monitored:
With the Radio on.

- Set Condition:
When the Output circuit is LOW for more than 3 seconds.





1. INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, clear all Audio DTCs.
3. Turn the Radio on.
4. With the scan tool, read the DTC information.

Does the scan tool read: B1405-FRONT RIGHT AUDIO SPEAKER OUTPUT CIRCUIT LOW?

Yes

- Go To 2

No

- The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

2. (X154) RIGHT FRONT DOOR SPEAKER (+) CIRCUIT SHORTED TO GROUND




1. Turn the ignition off.
2. Disconnect the Radio C1 harness connector.
3. Disconnect the Right Front Door Speaker harness connector.
4. Measure the resistance between ground and the (X154) Right Front Door Speaker (+) circuit.

Is the resistance below 5.0 Ohms?

Yes

- Repair short to ground in the (X154) Right Front Door Speaker (+) circuit.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Go To 3

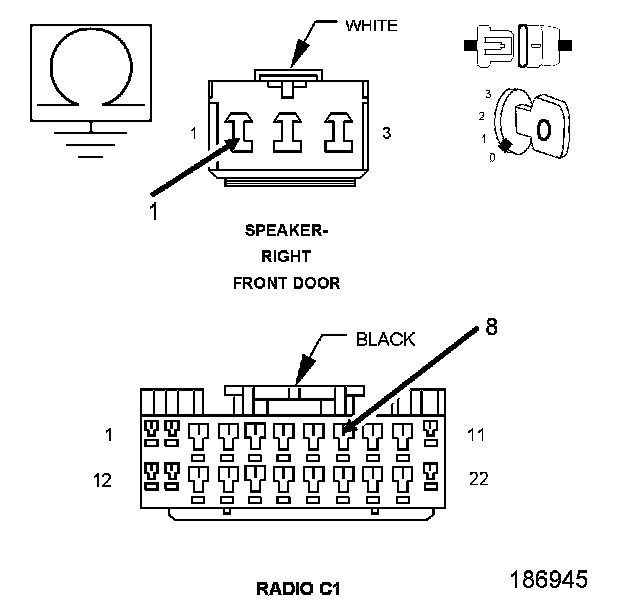

3. (X156) RIGHT FRONT DOOR SPEAKER (-) CIRCUIT SHORTED TO GROUND




1. Turn the ignition off.
2. Disconnect the Radio C1 harness connector.
3. Disconnect the Right Front Door Speaker harness connector.
4. Measure the resistance between ground and the (X156) Right Front Door Speaker (-) circuit.

Is the resistance below 5.0 Ohms?

Yes

- Repair short to ground in the (X156) Right Front Door Speaker (-) circuit.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Replace the Right Front Door Speaker.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
