B1659

B1659-FRONT FOG LAMP CONTROL CIRCUIT LOW





For a complete wiring diagram, refer to the Wiring Information Electrical Diagrams.

- When Monitored:
With the Fog Lamps activated.

- Set Condition:
When the TIPM detects a low condition.





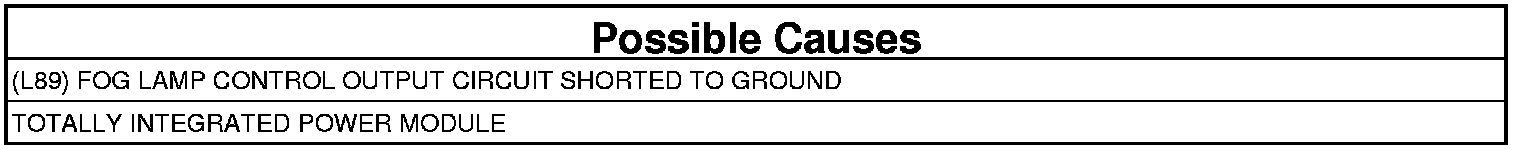

1. INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, clear all TIPM DTCs.
3. Turn the Front Fog Lamps on.
4. With the scan tool read the DTC information.

Does the scan tool read: B1659-FRONT FOG LAMP CONTROL CIRCUIT LOW?

Yes

- Go To 2

No

- The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

2. (L89) FOG LAMP CONTROL OUTPUT CIRCUIT




1. Turn the ignition off.

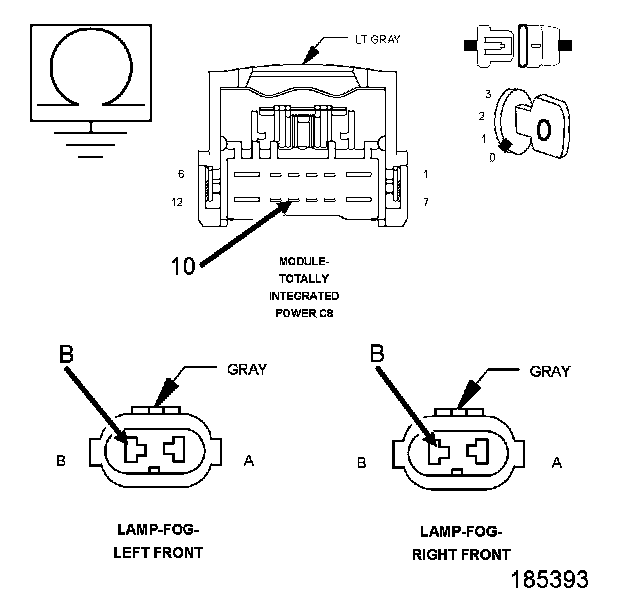

2. Disconnect the TIPM C8 harness connector.
3. Disconnect the Left and Right Front Fog Lamp harness connectors.
4. Measure the resistance between ground and the (L89) Front Fog Lamp Control Output circuit.

Is the resistance below 5.0 Ohms?

Yes

- Repair the (L89) Front Fog Lamp Control Output circuit for a short to ground.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Replace the Totally Integrated Power Module.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
