B212F

B212F-IGNITION RUN/ACC CONTROL CIRCUIT LOW





For a complete wiring diagram, refer to the Wiring Information Electrical Diagrams.

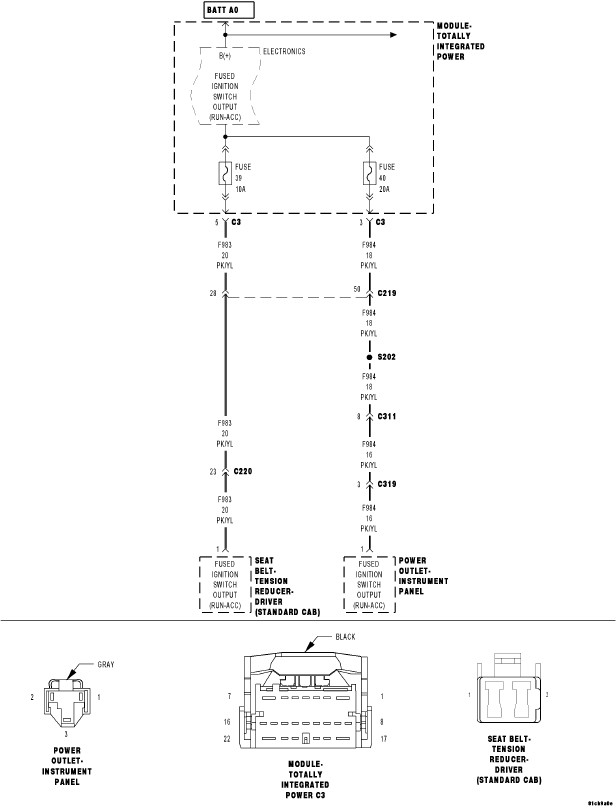

Theory of Operation

The family of B2100 DTCs typically describes ignition performance related faults. These are often caused by a contradiction of switch status information. For example, if an ECU receives a bussed message indicating ignition switch position but the state of a hardwired ignition circuit indicates another switch position a B2100 series DTC would likely result.

These DTCs can be caused by a number of conditions including:

- loose connections
- missing or blown fuses
- faulty component
- vehicle no start or long crank time

Verify the proper operation of the starting system and verify that this DTC is active before proceeding with the diagnostic test.

- When Monitored:
With the ignition on.

- Set Condition:
The TIPM will set this code when a short to ground condition is detected on the Ignition Run/Acc circuit.





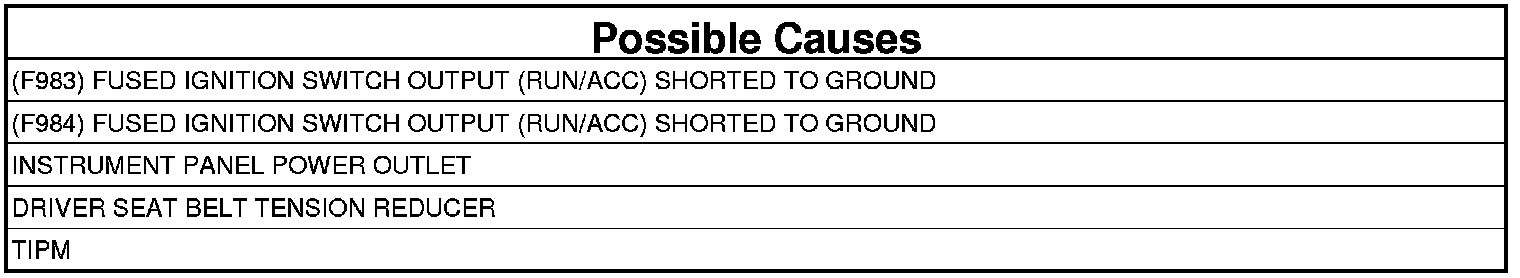

1. CHECK FOR ACTIVE DIAGNOSTIC TROUBLE CODE (DTC)
1. Turn the ignition on.
2. Using the scan tool, read the active DTC.

Does the scan tool display this DTC as active?

Yes

- Go To 2

No

- If the DTC is stored, check for an intermittent condition. Using the wiring diagram/schematic as a guide, visually inspect the related wiring harness connectors. Look for broken, bent, pushed out or corroded terminals.
- Perform the BODY VERIFICATION TEST Body Verification Test.

2. INSTRUMENT PANEL POWER OUTLET




1. Turn the ignition off.
2. Disconnect the Instrument Panel Power Outlet.
3. Turn the ignition on.
4. Using the scan tool, read DTCs.

Does the scan tool display active DTC-B212F-IGNITION RUN/ACC CONTROL CIRCUIT LOW?

Yes

- Go To 3

No

- Replace the Instrument Panel Power Outlet.
- Perform the BODY VERIFICATION TEST Body Verification Test.

3. DRIVER SEAT BELT TENSION REDUCER




1. Turn the ignition off.
2. Disconnect the Driver Seat Belt Tension Reducer.
3. Turn the ignition on.
4. Using the scan tool, read DTCs.

Does the scan tool display active DTC-B212F-IGNITION RUN/ACC CONTROL CIRCUIT LOW?

Yes

- Go To 4

No

- Replace the Driver Seat Belt Tension Reducer.
- Perform the BODY VERIFICATION TEST Body Verification Test.

4. (F983) FUSED IGNITION SWITCH OUTPUT (RUN/ACC) SHORTED TO GROUND




1. Turn the ignition off.
2. Disconnect the TIPM C3 harness connector.

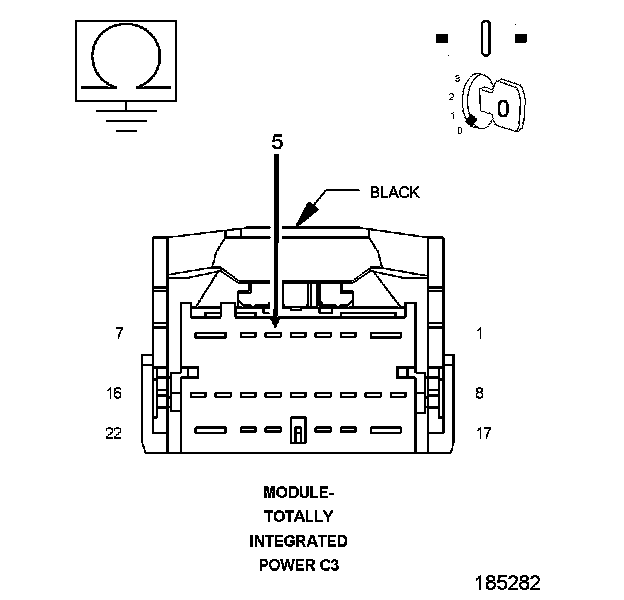

3. Measure the resistance between ground and the (F983) Fused Ignition Switch Output (Run/Acc) circuit.

Is the resistance below 10K Ohms?

Yes

- Repair the (F983) Fused Ignition Switch Output (Run/Acc) circuit for a short to ground.
- Perform the BODY VERIFICATION TEST Body Verification Test.

No

- Go To 5

5. (F984) FUSED IGNITION SWITCH OUTPUT (RUN/ACC) SHORTED TO GROUND

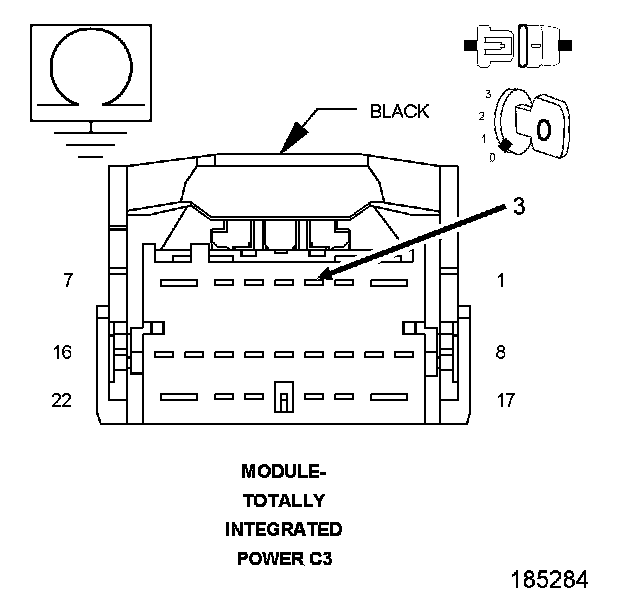

1. Measure the resistance between ground and the (F984) Fused Ignition Switch Output (Run/Acc) circuit.

Is the resistance below 10K Ohms?

Yes

- Repair the (F984) Fused Ignition Switch Output (Run/Acc) circuit for a short to ground.
- Perform the BODY VERIFICATION TEST Body Verification Test.

No

- Replace the TIPM.
- Perform the BODY VERIFICATION TEST Body Verification Test.
