B2215

B2215-FRONT CONTROL MODULE INTERNAL (TOTALLY INTEGRATED POWER MODULE)

For a complete wiring diagram, refer to the Wiring Information Electrical Diagrams.

- When Monitored:
Continuously.

- Set Condition:

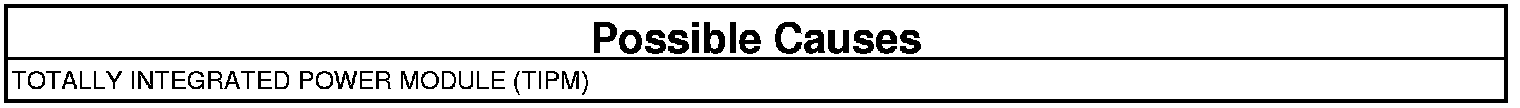

The Totally Integrated Power Module (TIPM) detects an internal fault.





REPLACE THE TOTALLY INTEGRATED POWER MODULE IF DTC IS ACTIVE
1. Using the scan tool, read the active DTCs.

Does the scan tool display this DTC as active?

Yes

- Replace and program the Totally Integrated Power Module.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out or corroded terminals.
