C140D - TRANSFER CASE MOTOR CONTROL CIRCUIT OPEN





For a complete wiring diagram, refer to the Wiring Information Electrical Diagrams.

- When Monitored:
Ignition on, battery voltage between 9.0 and 16.0 volts.

- Set Condition:
The TIPM detects no voltage on the Transfer Case Motor Control circuit for a period greater than 2 seconds, when voltage should be present.





1. DTC IS ACTIVE
1. Start the engine and allow it to idle.
2. Move the Transfer Case Selector Switch to each position several times.
3. With the scan tool, read the TIPM DTCs.

Is the status Active for this DTC?

Yes

- Go To 2

No

- Go To 8

2. SHIFT MOTOR HARNESS CIRCUIT RESISTANCE




1. Turn the ignition off to the lock position.
2. Remove the TIPM C4 harness connector.

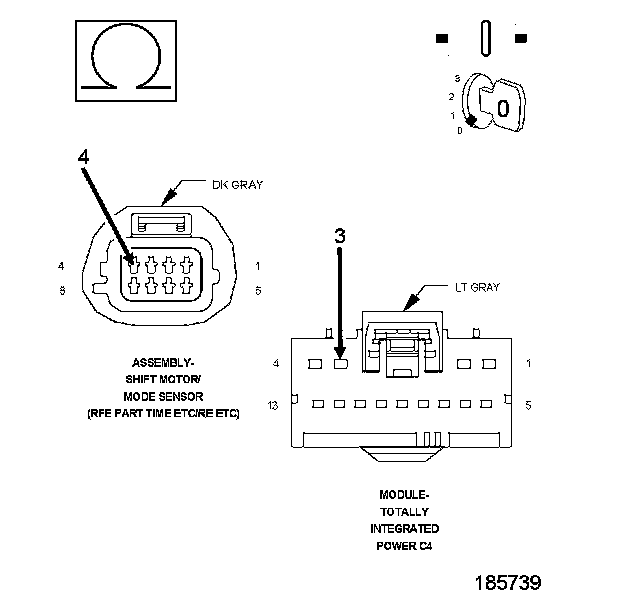

3. Measure the resistance between the (T101) Shift Motor Control A circuit and the (T102) Shift Motor Control B circuit.

Is the resistance between 40 and 100 ohms?

Yes

- Go To 7

No

- Go To 3

3. SHIFT MOTOR CIRCUIT RESISTANCE
1. Disconnect the Shift Motor/Mode Sensor Assembly harness connector.
2. Measure the resistance between the (T101) Shift Motor Control A circuit and the (T102) Shift Motor Control B circuit at the Shift Motor/Mode Sensor Assembly component side.

Is the resistance between 40 and 100 ohms?

Yes

- Go To 4

No

- Go To 6

4. (T101) SHIFT MOTOR CONTROL A CIRCUIT OPEN




1. Measure the resistance of the (T101) Shift Motor Control A circuit between the Shift Motor/Mode Sensor Assembly harness connector and the TIPM C4 harness connector.

Is the resistance above 5.0 ohms?

Yes

- Repair the (T101) Shift Motor Control A circuit for an open.
- Perform the TRANSFER CASE VERIFICATION TEST Transfer Case Verification Test.

No

- Go To 5

5. (T102) SHIFT MOTOR CONTROL B CIRCUIT OPEN




1. Measure the resistance of the (T102) Shift Motor Control B circuit between the Shift Motor/Mode Sensor Assembly harness connector and the TIPM C4 harness connector.

Is the resistance above 5.0 ohms?

Yes

- Repair the (T102) Shift Motor Control B circuit for an open.
- Perform the TRANSFER CASE VERIFICATION TEST Transfer Case Verification Test.

No

- Go To 7

6. SHIFT MOTOR/MODE SENSOR ASSEMBLY
1. Using the wiring diagram/schematic as a guide, inspect all wiring and connectors that pertain to this circuit.

Were any problems found?

Yes

- Repair as necessary.
- Perform the TRANSFER CASE VERIFICATION TEST Transfer Case Verification Test.

No

- Replace the Shift Motor/Mode Sensor Assembly.
- Perform the TRANSFER CASE VERIFICATION TEST Transfer Case Verification Test.

7. TOTALLY INTEGRATED POWER MODULE (TIPM)
1. Using the wiring diagram/schematic as a guide, inspect all wiring and connectors that pertain to this circuit.

Were any problems found?

Yes

- Repair as necessary.
- Perform the TRANSFER CASE VERIFICATION TEST Transfer Case Verification Test.

No

- Replace the Totally Integrated Power Module (TIPM).
- Perform the BODY VERIFICATION TEST Body Verification Test.

8. INTERMITTENT WIRING AND CONNECTORS
1. The conditions necessary to set this DTC are not present at this time.
2. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
3. While monitoring the scan tool data relative to this circuit, wiggle test the wiring and connectors.
4. Look for the data to change or for the DTC to reset during the wiggle test.

Were any problems found?

Yes

- Repair as necessary.
- Perform the TRANSFER CASE VERIFICATION TEST Transfer Case Verification Test.

No

- Test complete.
