P0573

P0573-BRAKE SWITCH 1 STUCK OFF





For a complete wiring diagram refer to the Wiring Information Electrical Diagrams.

- When Monitored:
While the ignition is on.

- Set Condition:
The brake switch status is = to ON and the not brake switch status is = to OFF for a calibrated amount of time.





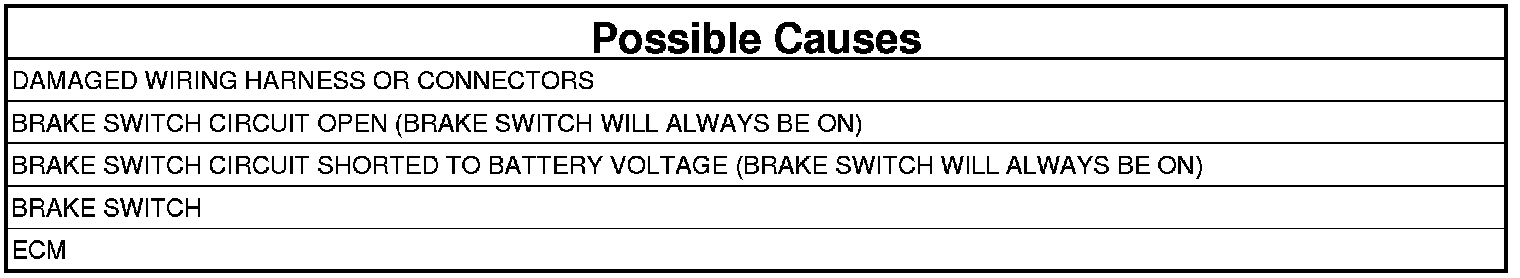

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Pre-Diagnostic Troubleshooting Procedure

1. BRAKE SWITCH CIRCUIT OPEN
1. Turn the ignition off.
2. Disconnect the brake switch connection. Inspect the pins and connector for damage, corrosion, etc.
3. Disconnect the ECM connectors. Inspect the pins and connector for damage, corrosion, etc.

NOTE: Check connectors - Clean/repair as necessary.

4. Measure the resistance between the brake switch signal circuits in the ECM connector and the brake switch connector.

Is the resistance less than 10 ohms?

Yes

- Go To 2

No

- Repair the open brake switch circuits.
- Perform POWERTRAIN VERIFICATION TEST - 6.7L. Powertrain Verification Test

2. BRAKE SWITCH CIRCUIT SHORTED TO VOLTAGE
1. Measure the voltage between the brake switch circuits in the ECM connector and battery negative.

Is the voltage less than 1 volt?

Yes

- Go To 3

No

- Repair the short to voltage in the circuit.
- Perform POWERTRAIN VERIFICATION TEST - 6.7L. Powertrain Verification Test

3. ECM
1. Reconnect the ECM connectors.
2. Install a jumper wire in the brake switch connector between signal circuit and to ground.
3. Turn the ignition on.
4. Cycle the brake pedal several times.
5. Using the scan tool, read the DTCs.

Is the DTC for brake switch low voltage present?

Yes

- Go To 4

No

- Replace the ECM.
- Perform POWERTRAIN VERIFICATION TEST - 6.7L. Powertrain Verification Test

4. BRAKE SWITCH
1. Reconnect the brake switch connector.
2. Using the scan tool, clear the DTCs.
3. Turn the ignition on.
4. Cycle the brake pedal several times.
5. Using the scan tool, read the DTCs.

Has the brake switch High DTC returned?

Yes

- Replace the brake switch.
- Perform POWERTRAIN VERIFICATION TEST - 6.7L. Powertrain Verification Test

No

- Perform INTERMITTENT CONDITION - DIESEL test.Intermittent Condition Test
