Home
>>
Dodge or Ram Truck
>>
2009
>>
RAM 5500 Chassis Cab Truck 2WD L6-6.7L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Belt Buckle Switch
Seat Belt Buckle Switch

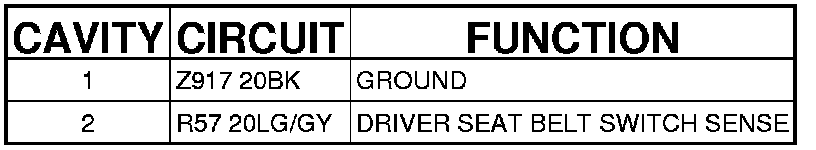

Connector (LD) - (SEAT) 2 WAY
SWITCH-SEAT BELT-DRIVER (LD) - (SEAT) 2 WAY
