Home >> Dodge or Ram Truck >> 2009 >> RAM 5500 Chassis Cab Truck 2WD L6-6.7L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Suspension Mode Switch

Suspension Mode Switch

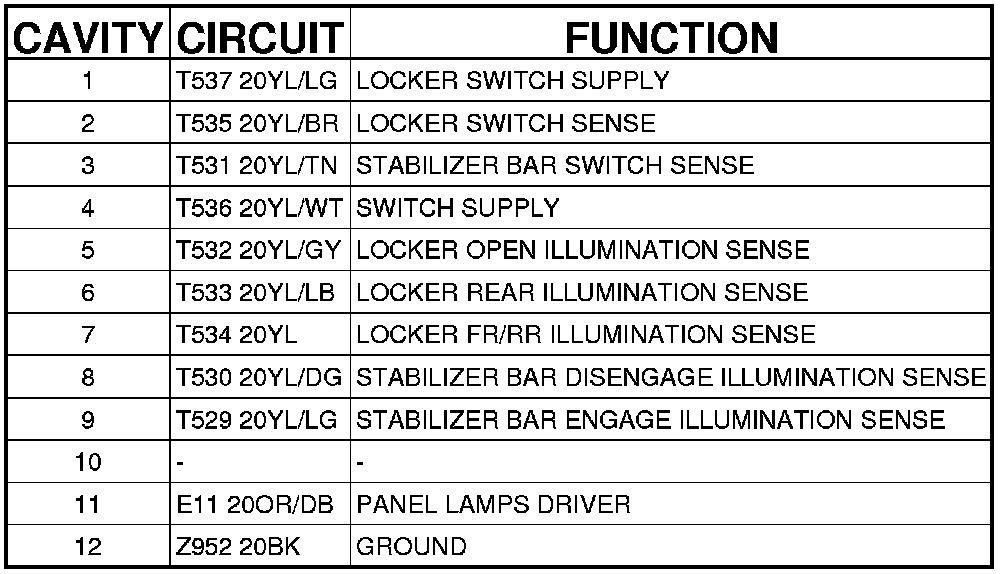

Connector - (SMART BAR SWITCH JUMPER) 12 WAY




SWITCH-DISCONNECTING STABILIZER BAR - (SMART BAR SWITCH JUMPER) 12 WAY
