Driver Airbag Squib 1 (Sensor Side)
Driver Airbag Squib 1 (Sensor Side)

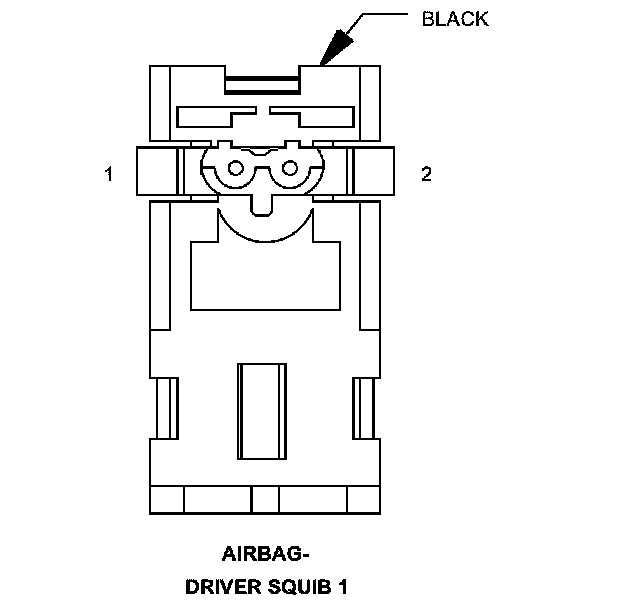

Connector - (SENSOR SIDE)

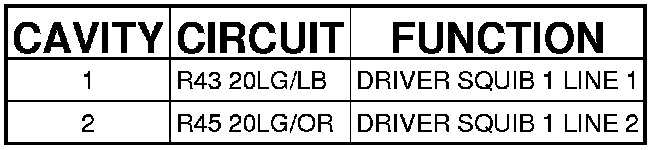

AIRBAG-DRIVER SQUIB 1 - (SENSOR SIDE)
