C130 (6.7L A/T) (Headlamp And Dash) 86 Way
C130 (6.7L A/T) (Headlamp And Dash) 86 Way

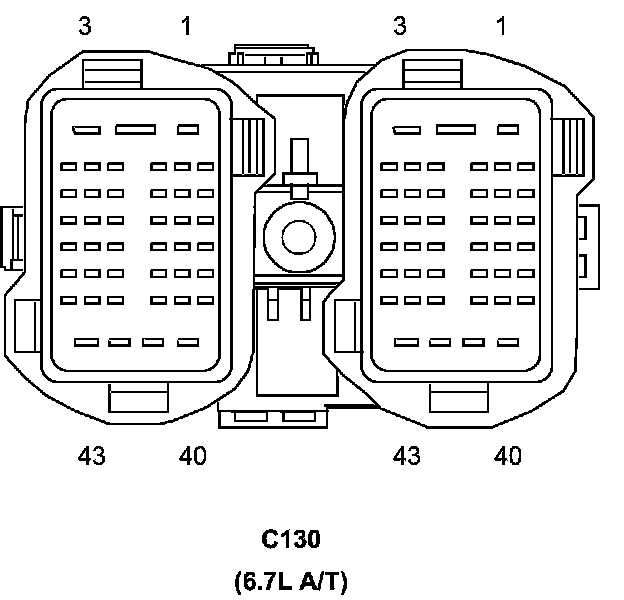

Connector (6.7L A/T) - (
HEADLAMP
AND DASH) 86 WAY

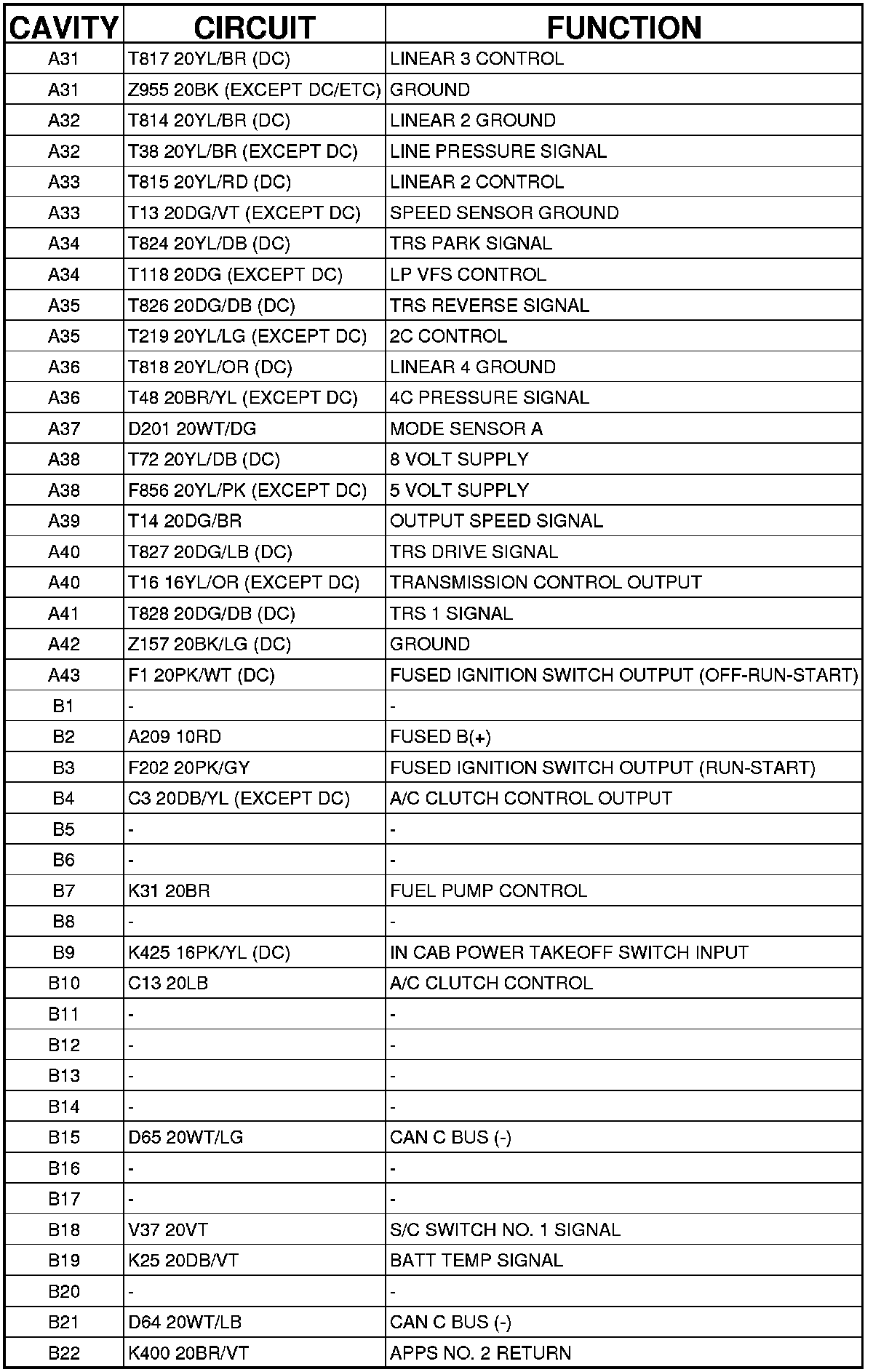

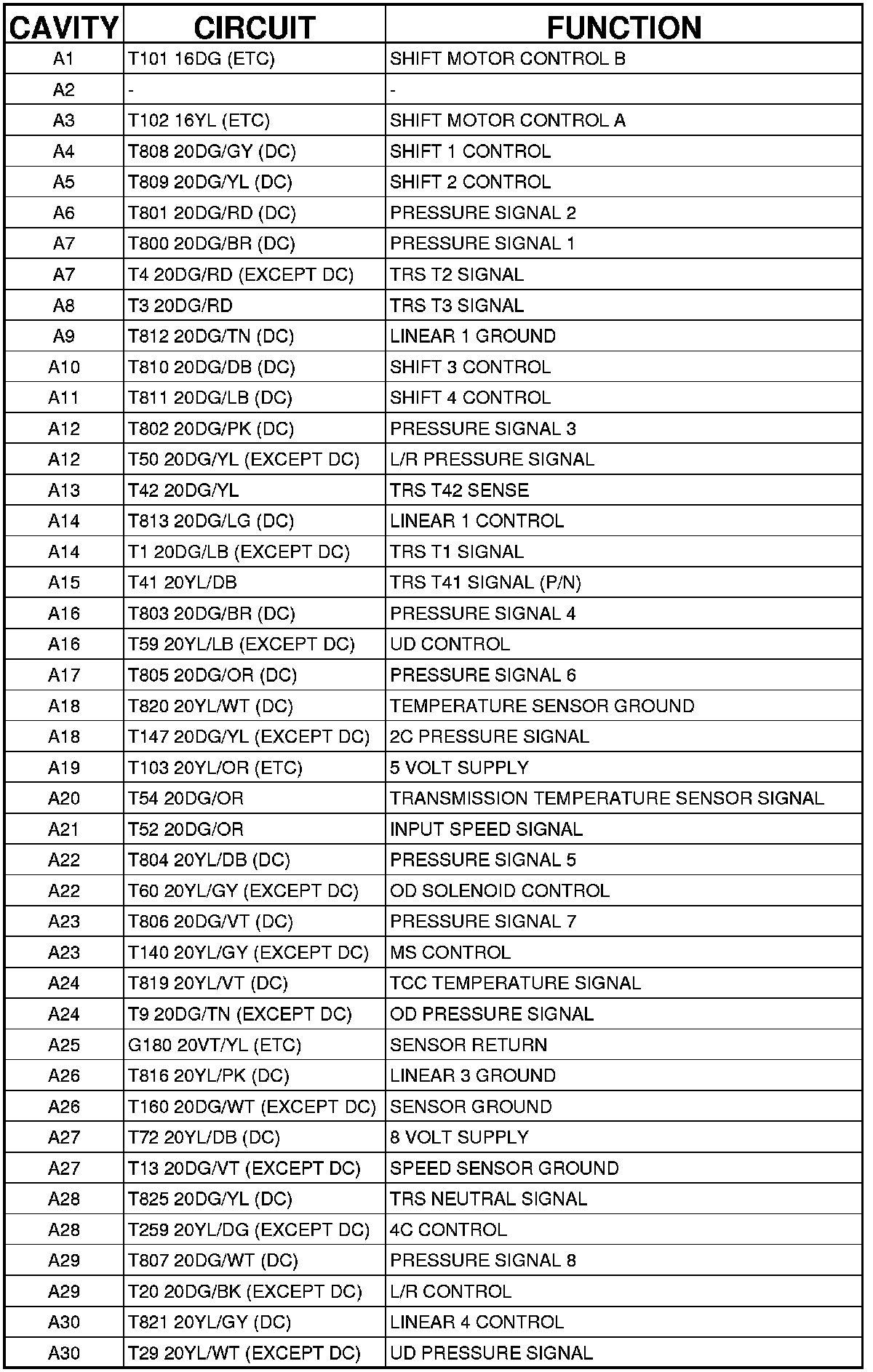

C130 (6.7L A/T) - (
HEADLAMP
AND DASH) 86 WAY
