C132 (Diesel M/T MTC) (Headlamp And Dash Side) 4 Way

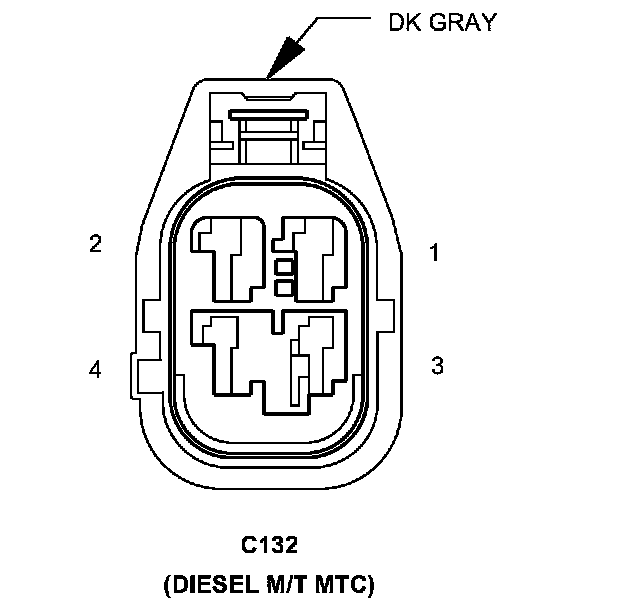

Connector (DIESEL M/T MTC) - (HEADLAMP AND DASH SIDE) 4 WAY

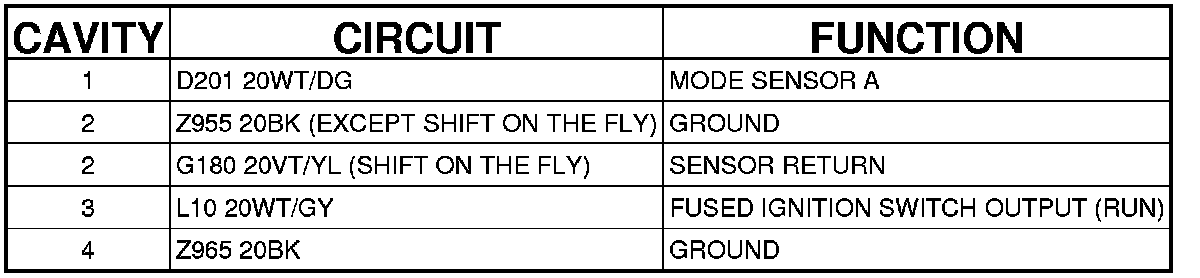

C132 (DIESEL M/T MTC) - (HEADLAMP AND DASH SIDE) 4 WAY
