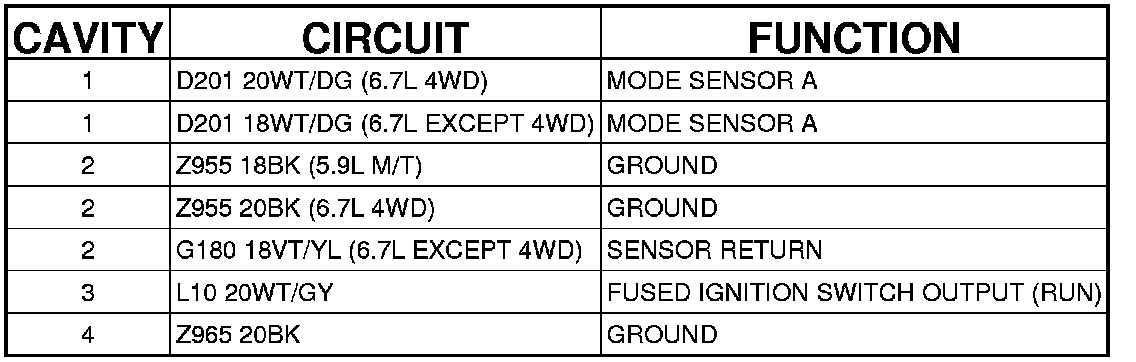

C132 (Diesel M/T MTC) (Transmission Side) 4 Way






Connector (DIESEL M/T MTC) - (TRANSMISSION SIDE) 4 WAY




C132 (DIESEL M/T MTC) - (TRANSMISSION SIDE) 4 WAY
