EGR Temperature Sensor
>>
EGR Temperature Sensor (6.7L DH/D1) 2 Way
EGR Temperature Sensor (6.7L DH/D1) 2 Way

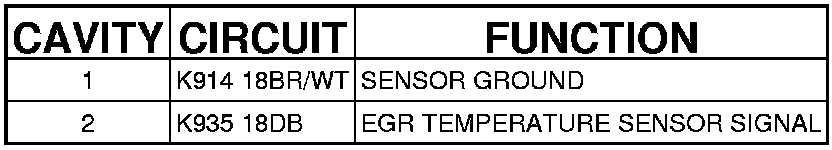

Connector (6.7L DH/D1) - 2 WAY

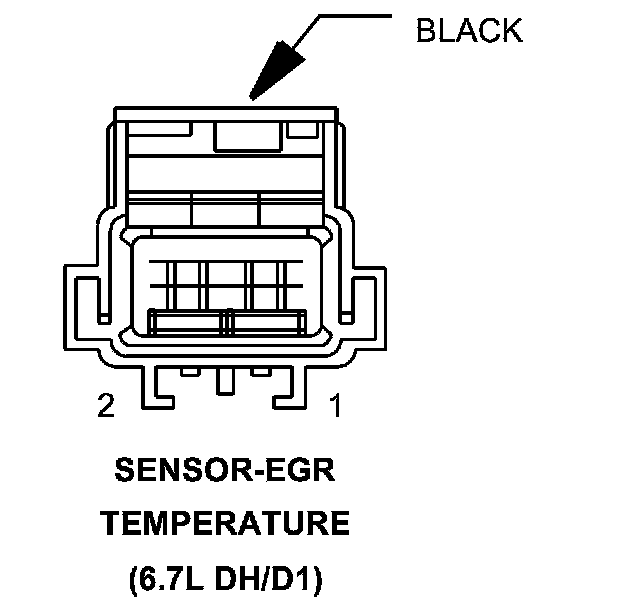

SENSOR-EGR TEMPERATURE (6.7L DH/D1) - 2 WAY
