Power Door Lock Actuator
>>

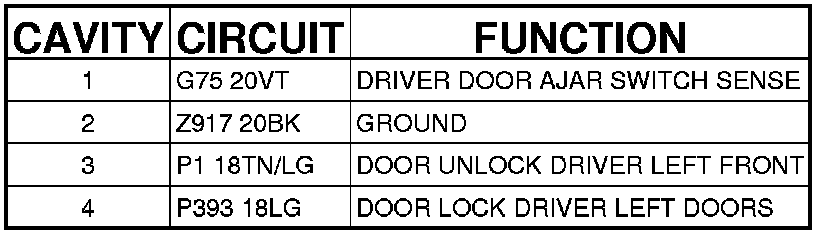

Driver Door Latch (Power Locks) (Front Door) 4 Way
Driver Door Latch (Power Locks) (Front Door) 4 Way
Connector (
POWER LOCKS
) - (FRONT DOOR) 4 WAY
LATCH-DOOR-DRIVER (
POWER LOCKS
) - (FRONT DOOR) 4 WAY
