Coolant Recovery Bottle - Removal

REMOVAL










1. Partially drain cooling system Service and Repair.

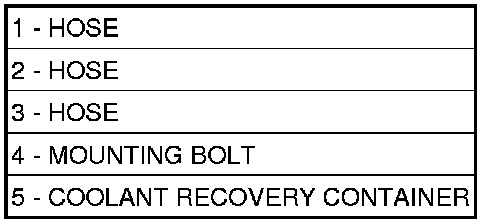

2. Remove hoses (1,2 and 3).
3. Disconnect electrical connector.
4. Remove coolant recover container mounting bolt (4).
5. Remove coolant recovery container (5).
