Electric Locking Differential Carrier Bearings - Installation

INSTALLATION

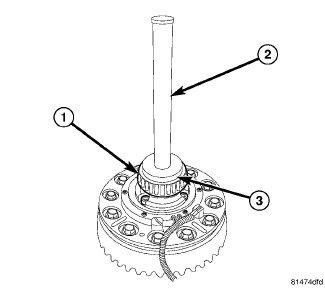

1. Install differential case bearings (1) with Handle C-4171 (2) and Installer 9612 (3).
2. Bend anti-rotation tabs back to original location.
