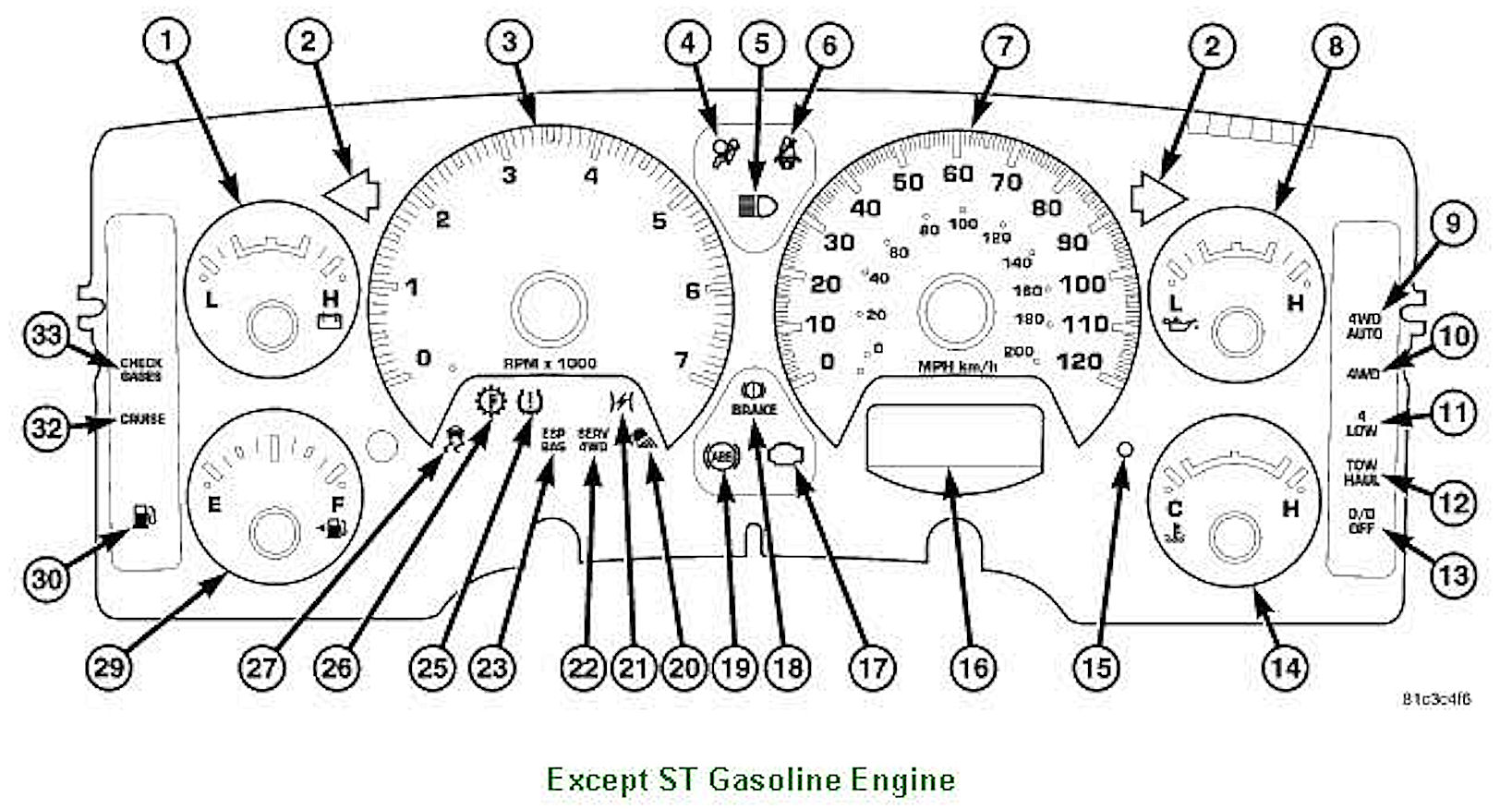

Instrument Cluster / Carrier: Locations

The EMIC includes the following analog gauges:

Engine Temperature Gauge (14)
Fuel Gauge (29)
Oil Pressure Gauge (8) - except ST with gasoline engine.
Speedometer (7)
Tachometer (3)
Voltage Gauge (1) - except ST with gasoline engine.

The EMIC includes the following VFD unit:

Odometer/Trip Odometer/Gear Selector Indicator (16)

The EMIC includes provisions for the following indicators:

Airbag Indicator (4)
Antilock Brake System (ABS) Indicator (19)
Brake Indicator (18)
Cargo Lamp Indicator (20)
Change Oil Indicator - on domestic market vehicles only, a textual message in odometer VFD (16) or in EVIC if so equipped.

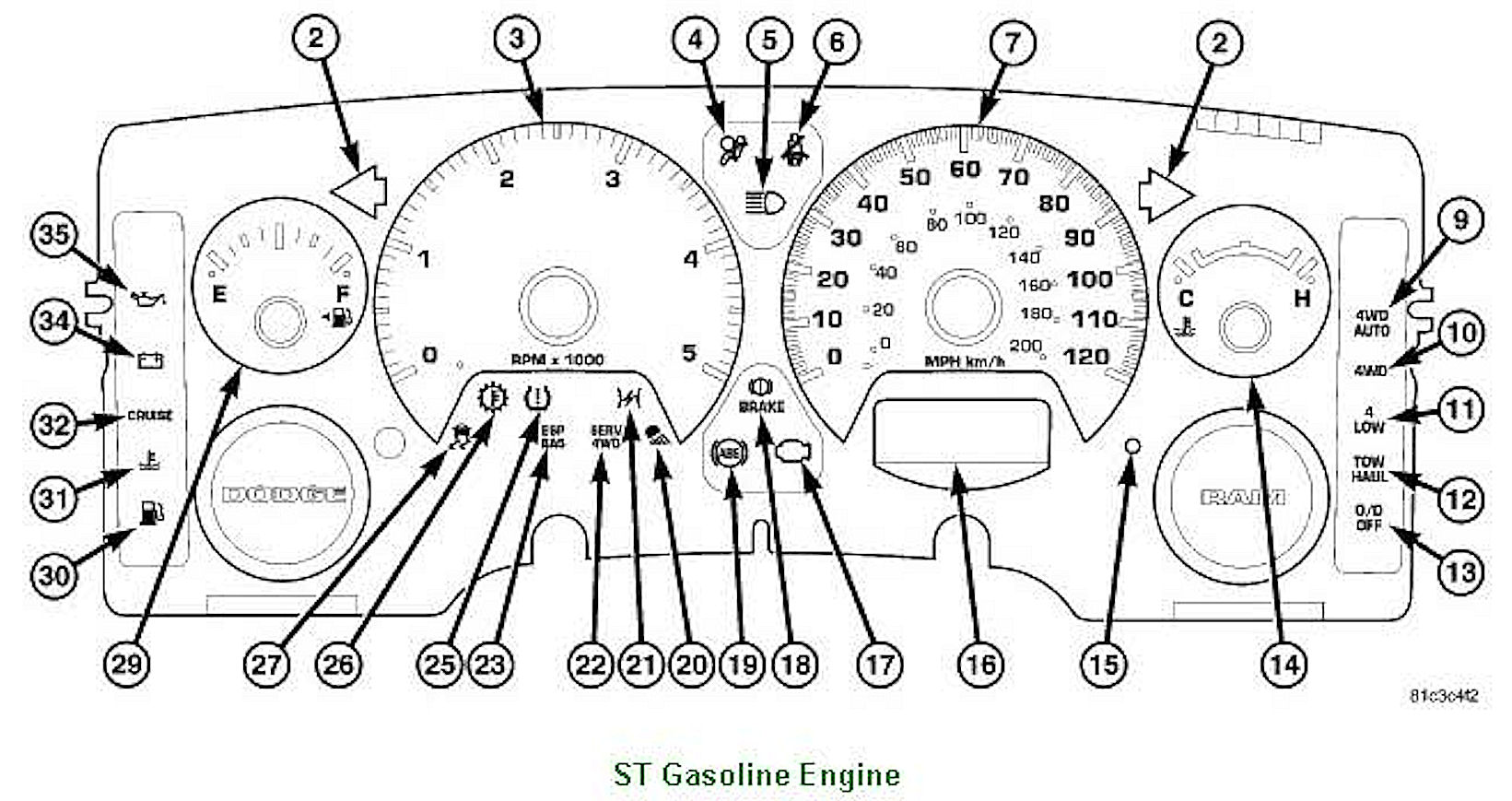

Charging Indicator (34) - ST with gasoline engine only.
Check Gauges Indicator (33) - except ST with gasoline engine.
Cruise Indicator (32)
Door Ajar Indicator-textual message in odometer VFD (16). Also in Electronic Vehicle Information Center (EVIC) if so equipped.
Electronic Stability Program (ESP)/Brake Assist System (BAS) Indicator (23) - except diesel engine.
Electronic Throttle Control (ETC) Indicator (21)
Fog Lamp Indicator- icon in odometer VFD (16).
Four-Wheel Drive (4WD) Indicator (10)
Four-Wheel Drive Auto (4WD Auto) Indicator (9)
Four-Wheel Drive Low (4 LOW) Indicator (11)
Gas Cap Indicator- textual message in odometer VFD (16).
High Beam Indicator (5)
Low Fuel Indicator (30)
Low Oil Pressure Indicator (35) - ST with gasoline engine only.
Malfunction Indicator Lamp (MIL) (17)
No Bus Indicator-textual message in odometer VFD (16).
No Fuse Indicator-textual message in odometer VFD (16).
Overdrive Off (O/D OFF) Indicator (13)
Seat Belt Indicator (6)
Security Indicator (15)
Service Four-Wheel Drive (Serv 4WD) Indicator (22)
Tire Pressure Monitor (TPM) Indicator (25)
Tow/Haul Indicator (12)
Traction Control Indicator (27) - except with diesel engine.
Transmission Overtemp Indicator (26)
Turn Signal (Right and Left) Indicators (2)

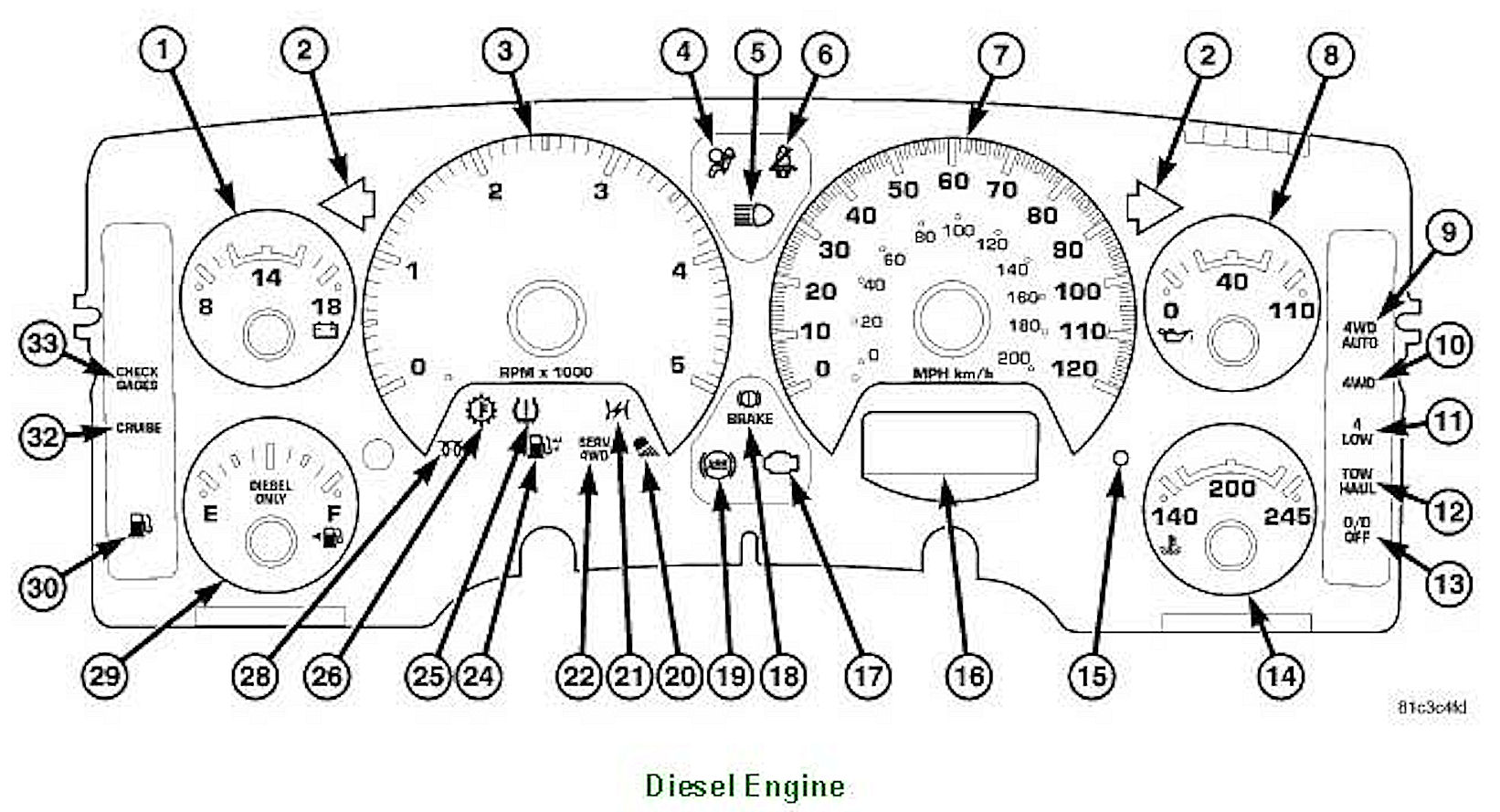

Wait-To-Start Indicator (28) - with diesel engine only.
Washer Fluid Indicator - textual message in odometer VFD (16) or in EVIC if so equipped.
Water-In-Fuel Indicator (24) - with diesel engine only
