Stabilizer Bar: Description and Operation

DESCRIPTION






NOTE: When the stabilizer bar or links are serviced it is recommended that a drive on hoist is used. If the suspension is hanging, there will be tension on the stabilizer bar.

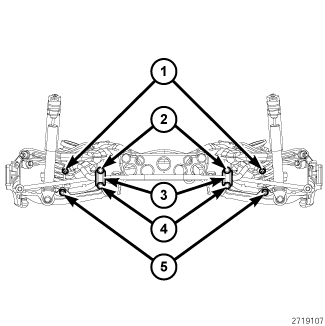

The stabilizer bar extends across the back side of the rear cradle with links connected between the stabilizer bar and the lower control arm. The stabilizer bar bushings (3) are bonded to the stabilizer bar and are not serviceable separate from the stabilizer bar.
