Canada - Campaign - M18 Brake Controller Wire Harness

Bulletin
M18

Issue Date
2012-06-05

IMPORTANT

DEALER SERVICE INSTRUCTIONS

CUSTOMER SATISFACTION NOTIFICATION M18 BRAKE CONTROLLER WIRE HARNESS INSTRUCTION SHEET

MODELS:
2011 (WD) Dodge Durango
(WK) Jeep(R) Grand Cherokee

NOTE:
This notification applies only to the above vehicles equipped with the trailer tow group (sales code AHT or AHX) built from November 03, 2010 through July 01, 2011 (MDH 110311 through 070103).

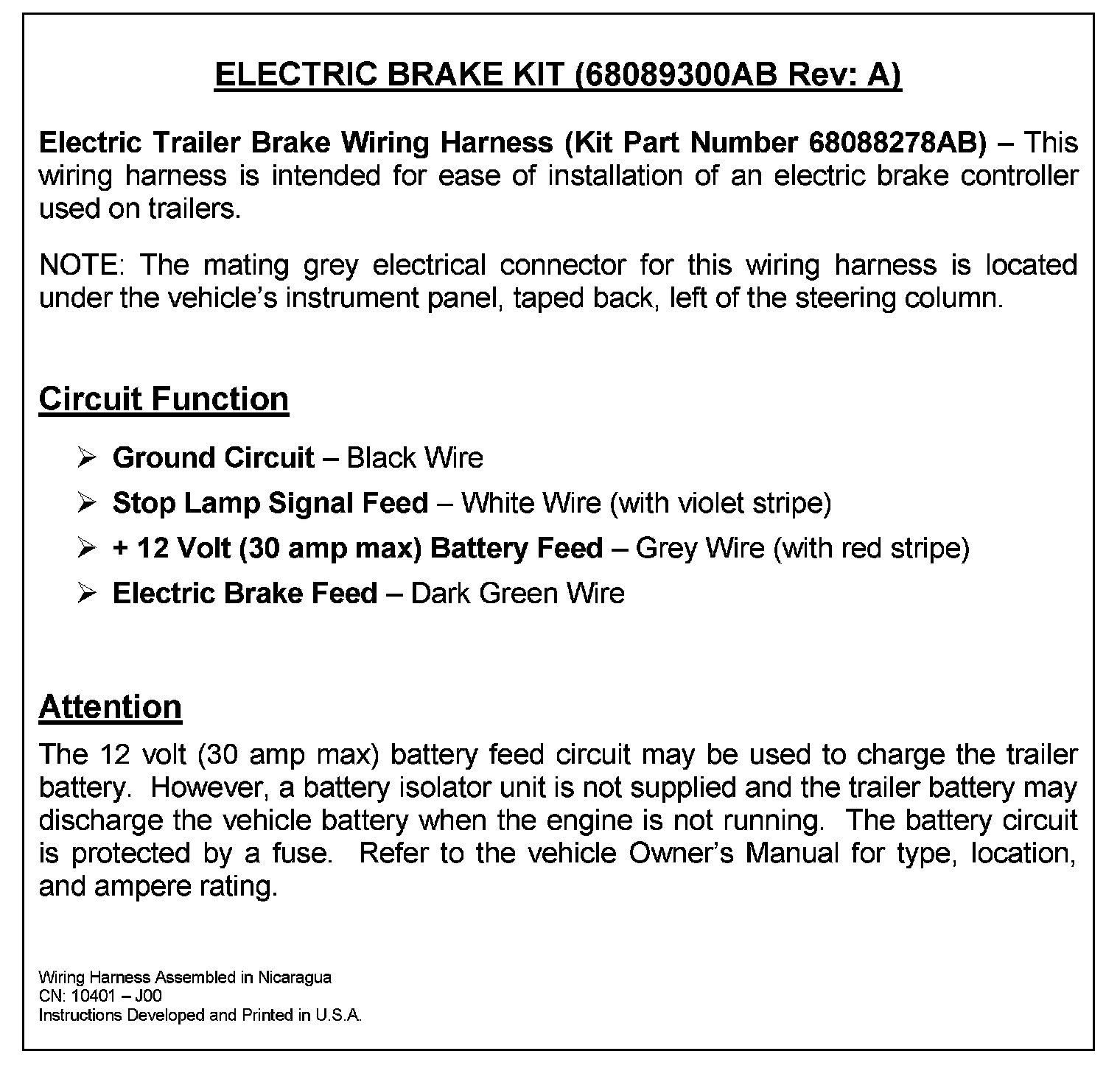

^ The brake controller wire harness instruction sheet on about 6,000 of the above vehicles has incorrect wiring color information. This could cause confusion during the wiring of trailer components to the vehicle.

^ To correct this condition, an updated brake controller wire harness instruction sheet will be mailed to all involved vehicle owners.

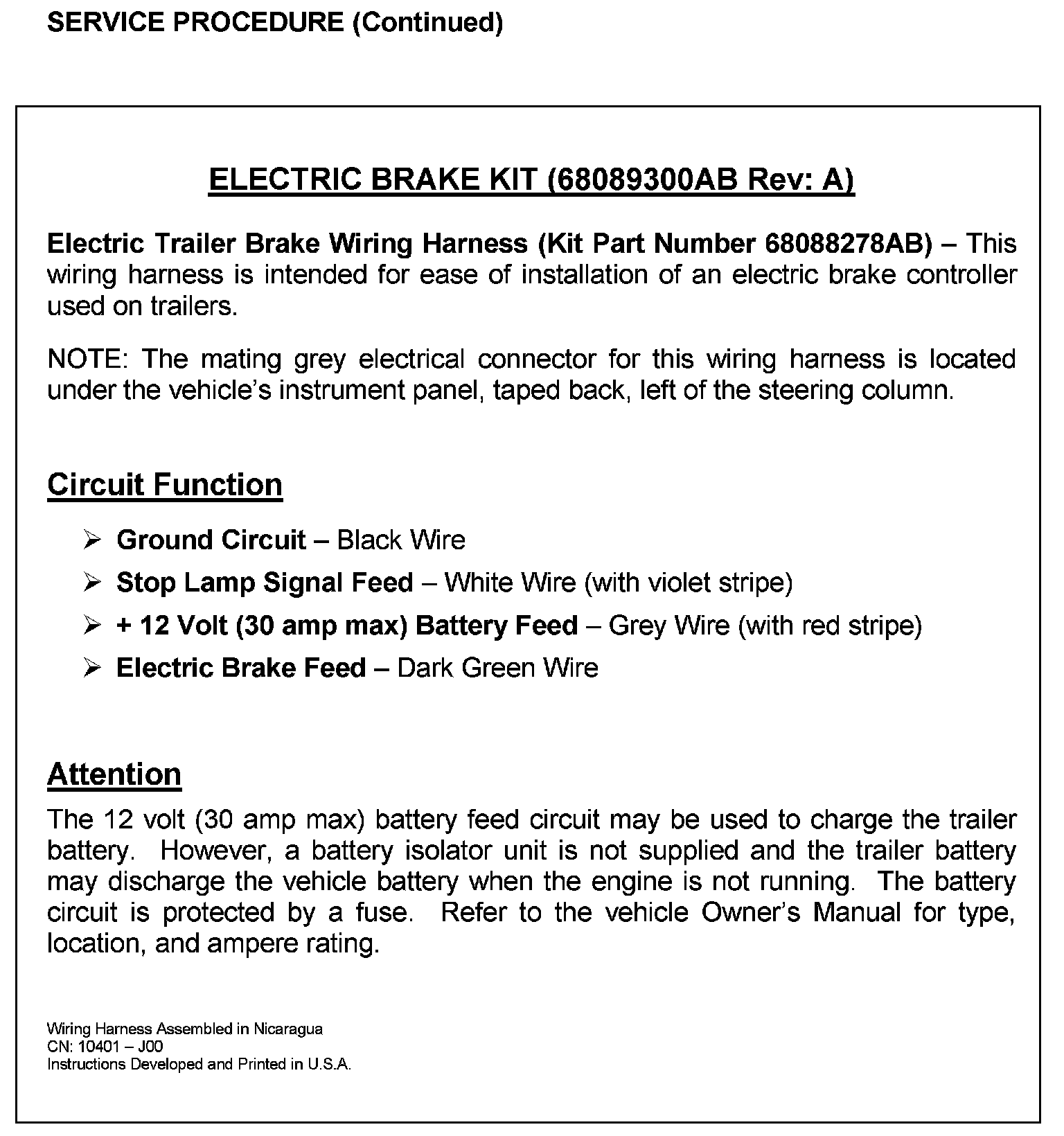

For vehicles in dealer inventory, a copy of the brake controller wire harness instruction sheet must be placed in the vehicle's electric brake kit plastic bag located in the glove box.

Recall and Parts Information
Canadian Recall Service Instructions and Part Numbers can be different. Always use the attached Canadian Recall Notification for service instructions and parts information.

This Canadian Recall Notification can also be found in DealerCONNECT - See below:

DealerCONNECT > Service > In the Repair section TechCONNECT > 30 - CANADIAN RECALLS

The V.I.N. range for vehicles involved in this campaign is as follows:

1J4RR4GT7BC501919 - 1D4SE5GT7BC746683

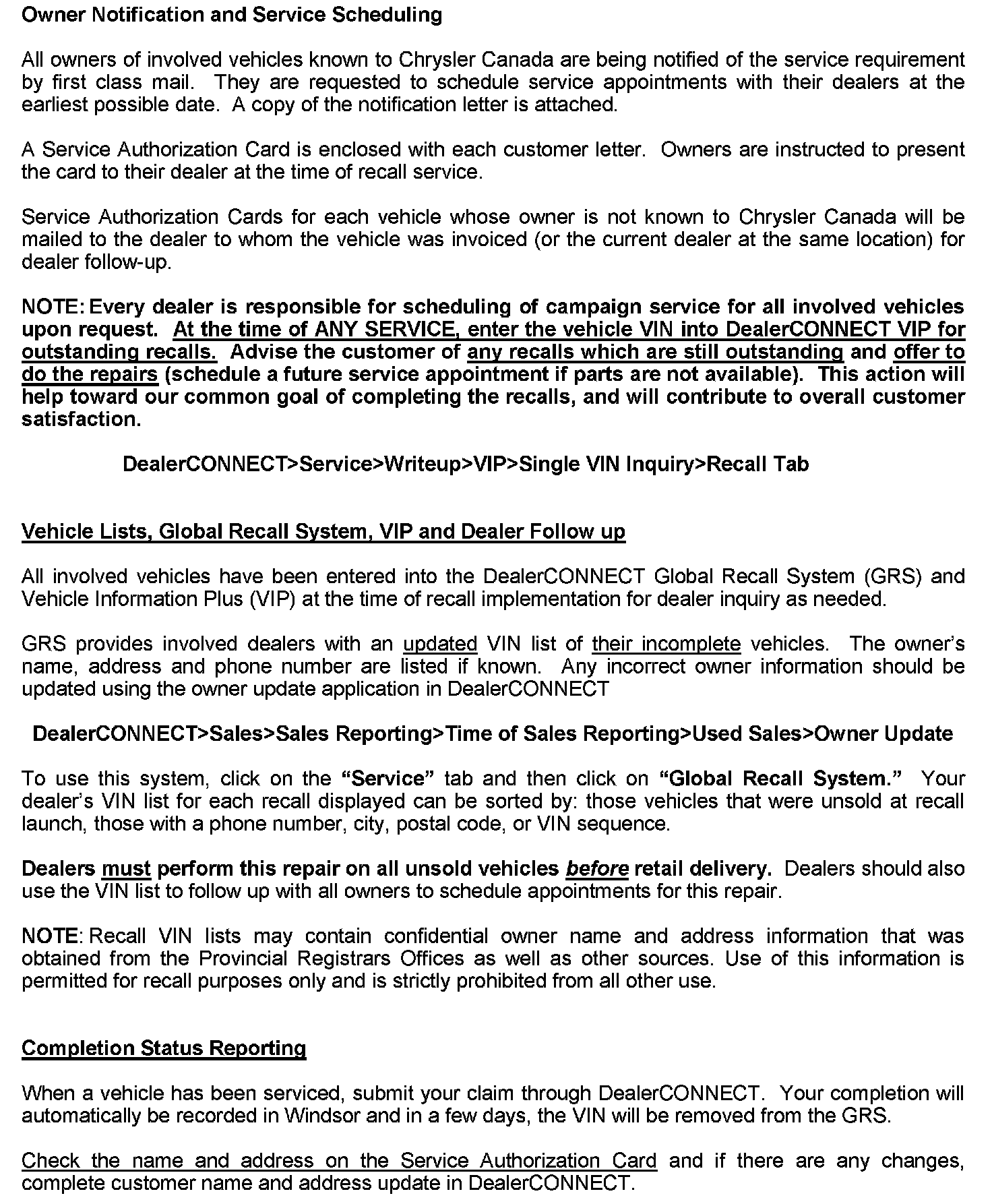

DEALER VIN LISTS Located in DealerCONNECT - Global Recall System (GRS)

GRS has been developed to provide dealers with an up-to-date list of involved vehicles by recall number and by dealer code. Owners known to Chrysler are also listed. Involved vehicles will be removed from the GRS within several days of submitting repair claims.

To use the GRS in DealerCONNECT, you first need to click on the Service tab and then in the Repair section click on Global Recall System. Your dealer's VIN list for each Recall can be sorted by: Unsold Vehicles (at the time of Recall launch), Phone Number, City Name, Zip Code (Postal Code) or VIN.

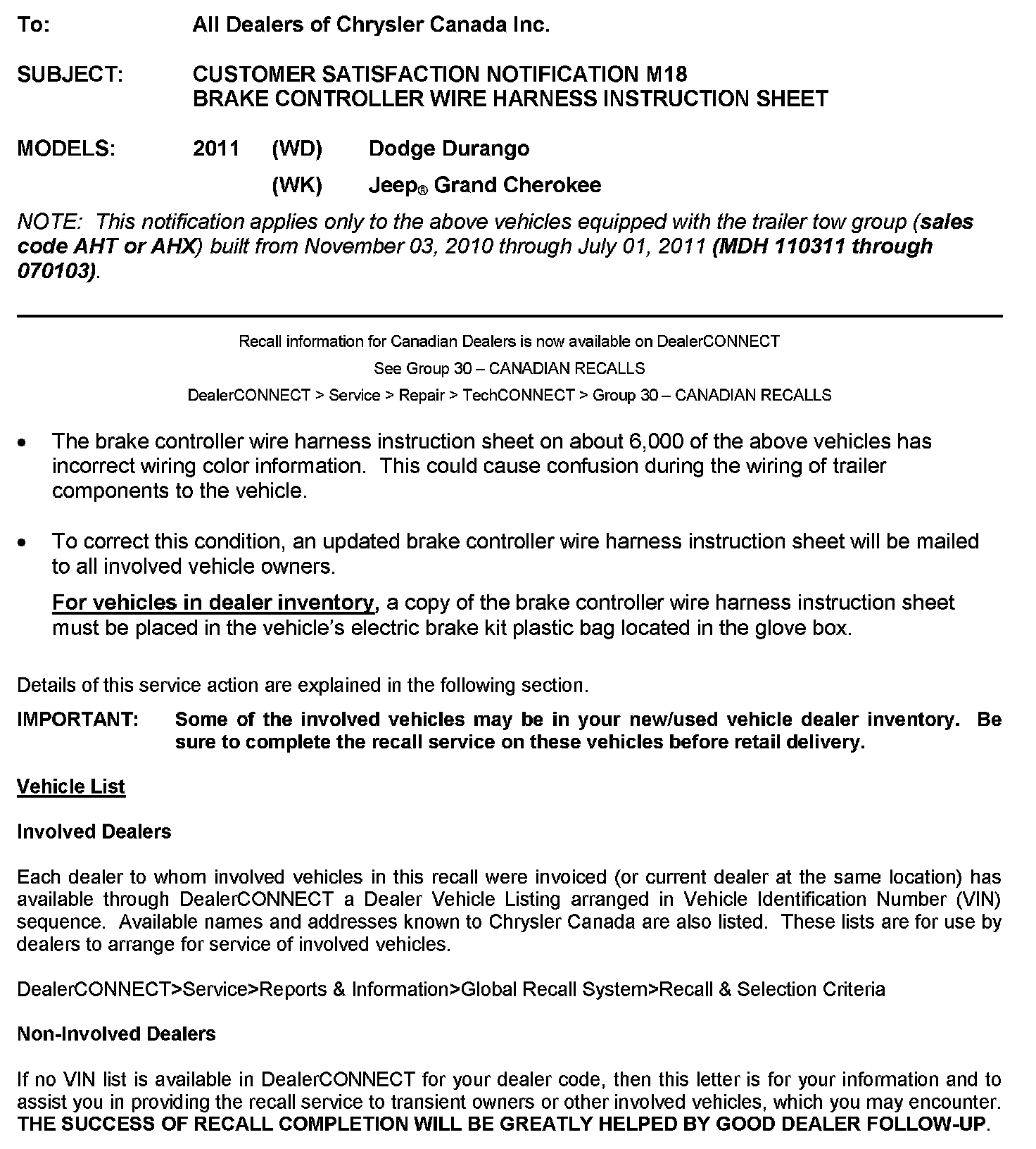

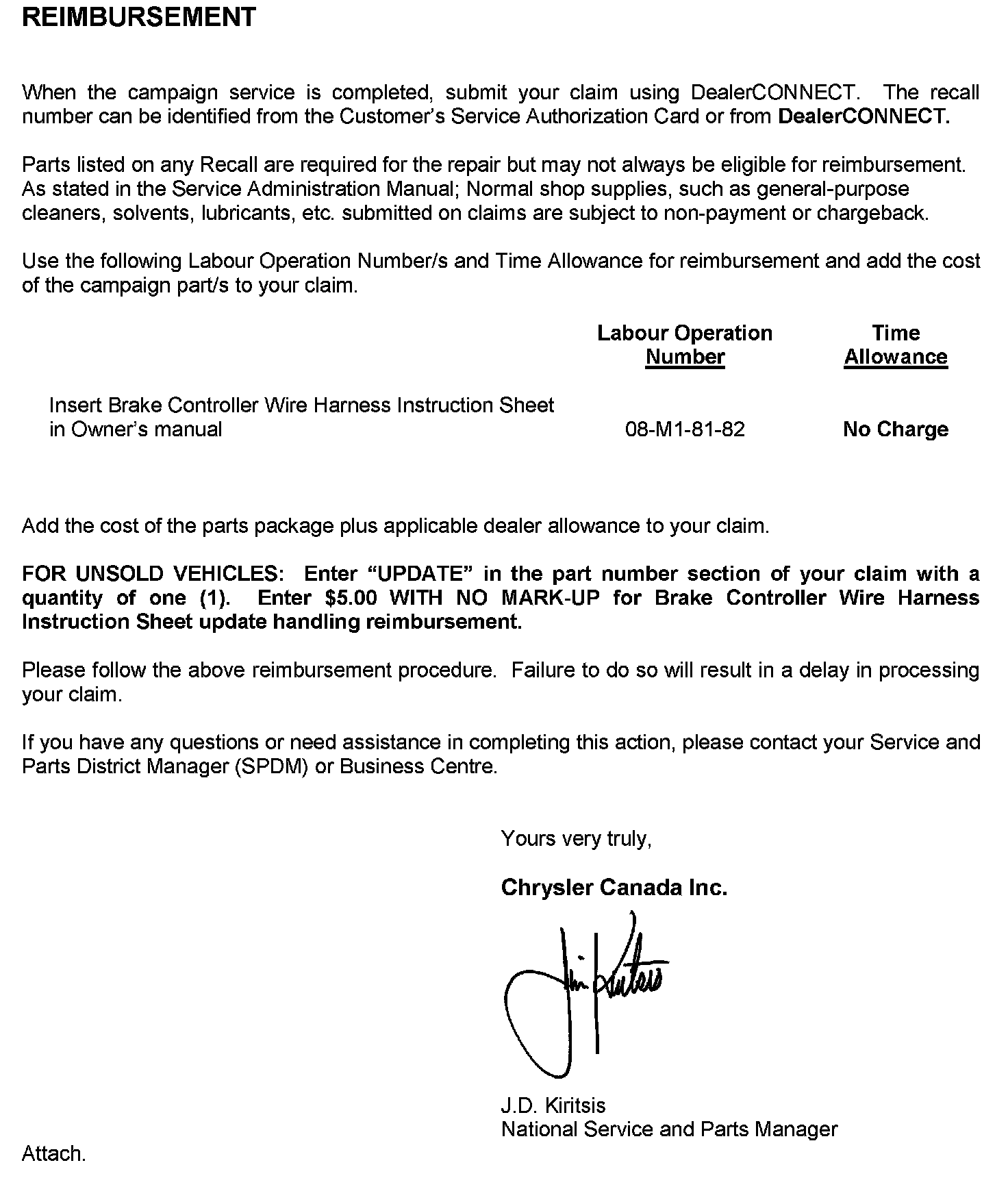

Dealer Information

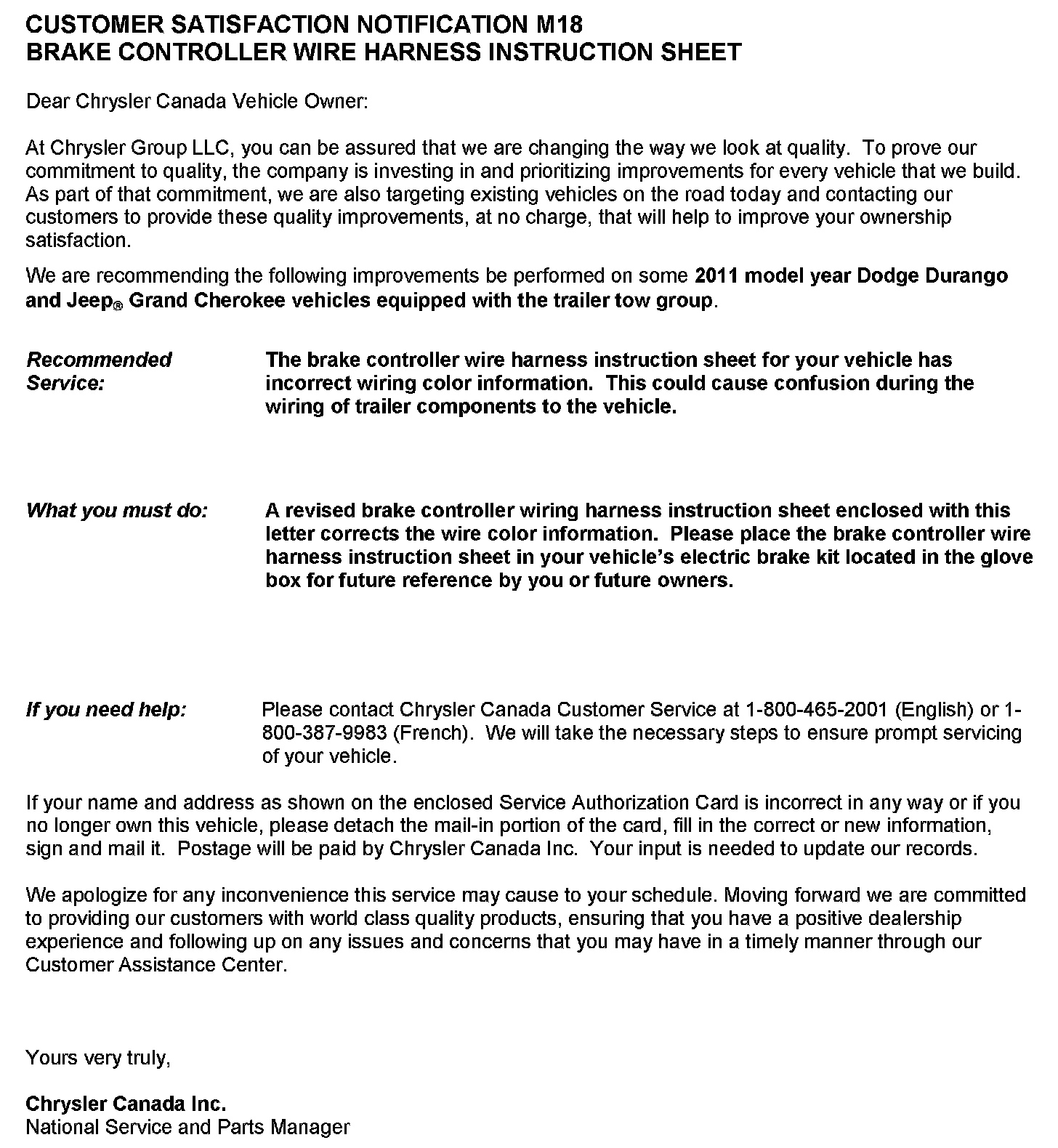

Owner Letter
