Wheel Stud / Lug Nut






WHEEL FASTENER


To install the wheel, first position it properly on the mounting surface.

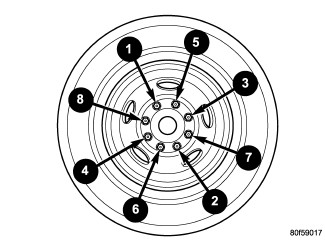

8-lug pattern.

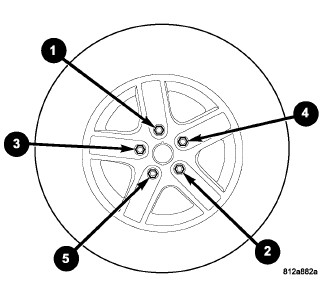

5-lug pattern.

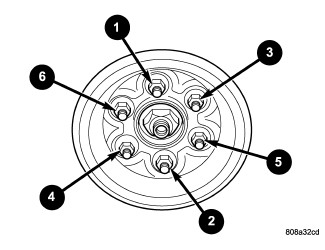

6- bolt pattern.

Lug Nut 9/16 X 18 with 60° Cone 176 Nm (130 ft.lbs)
Lug Nut 9/16 X 18 with 60° Cone (2500, 3500 - SRW) 190 Nm (140 ft.lbs)
Lug Nut 9/16 X 18 with Flat Washer (3500 - DRW) 197 Nm (145 ft.lbs)
Lug Nut 9/16 X 18 with Flat Washer (4500, 5500 - DRW) 200 Nm (15 ft.lbs)
