Ceiling Distribution Duct - Installation

INSTALLATION

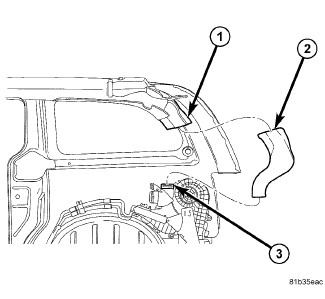

1. Install the rear ceiling distribution duct (2) onto the top of the rear heater-A/C housing (3). Make sure the duct is fully engage to the housing.

2. Install the rear ceiling distribution duct to the duct located in the rear of the headliner (1).

3. Install the right D-pillar trim panel.
