Home
>>
Eagle
>>
1982
>>
Eagle L4-151 2.5L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Related Tests, Information and Procedures
>>

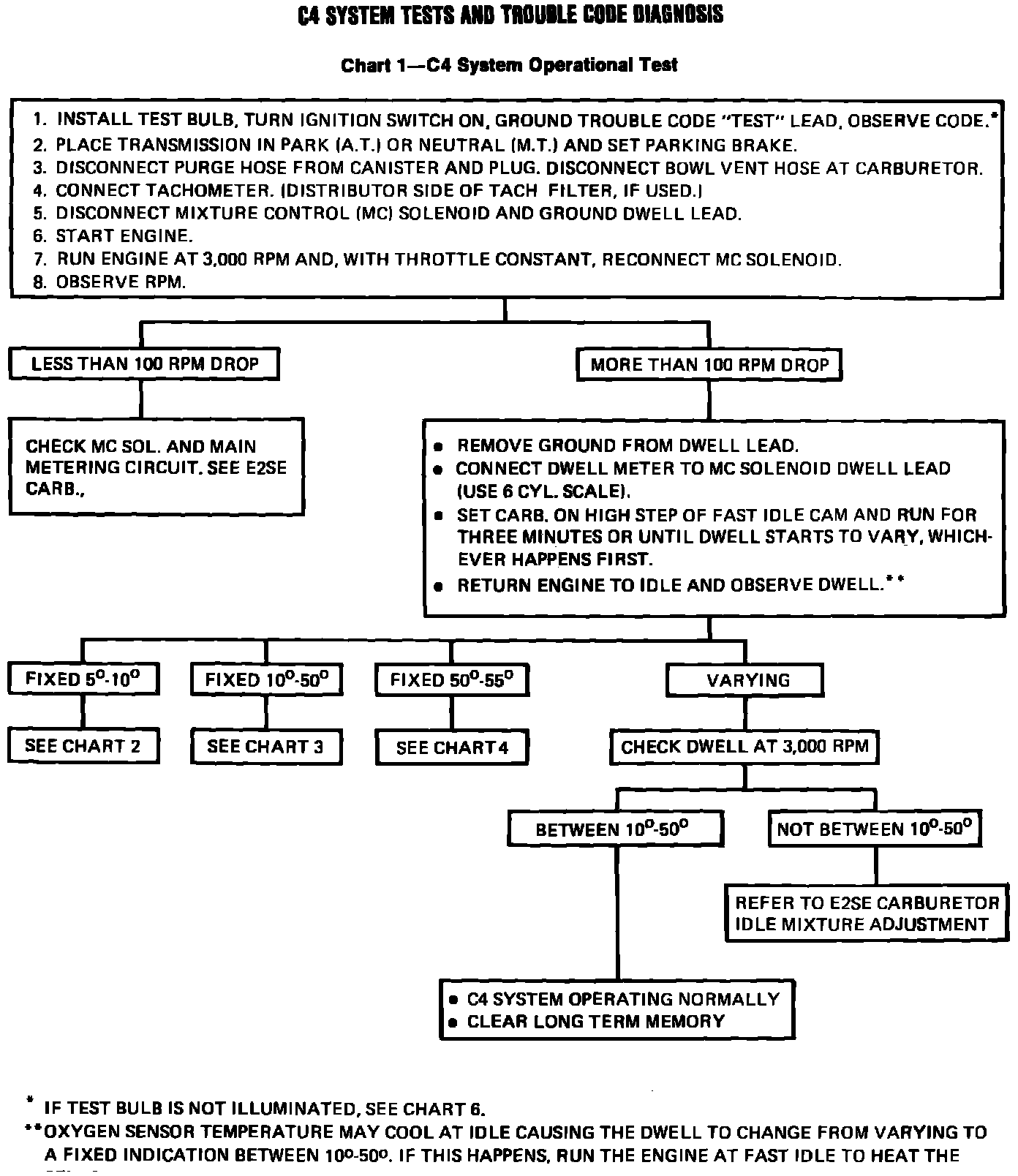

Chart 1-C4 System Operational Test
Chart 1-C4 System Operational Test
Chart 1-C4 System Operational Test:
