Thermostatic Air Cleaner: Locations

TAC System Components:

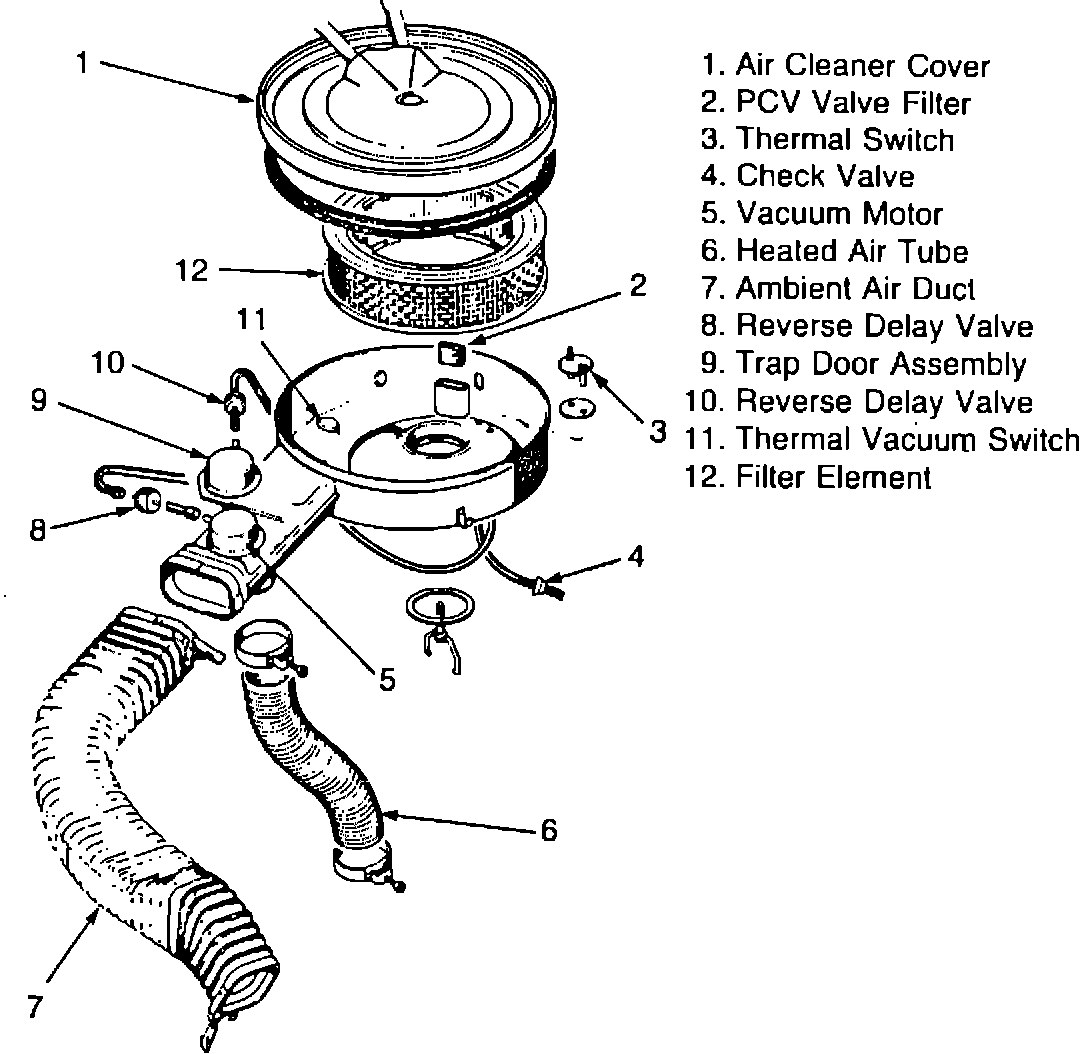

TAC System Components:




TAC System Components:




Part Of Air Cleaner Assembly
