Specifications
>>
Mechanical Specifications
>>
Engine
>>
Drive Belt
Drive Belt
NOTE:
Use a strand tension gauge. Measurements are in pounds.
NOTE:
A belt in operation 10 minutes is considered a used belt.

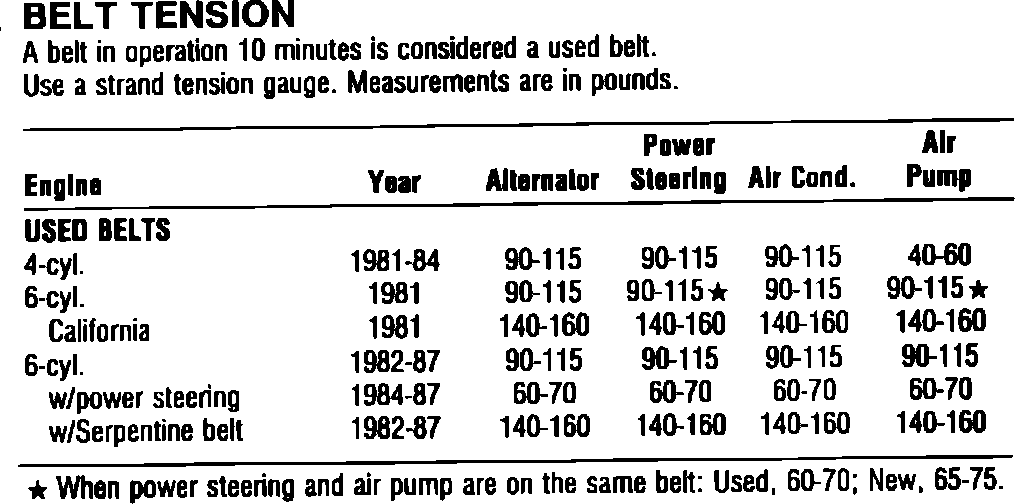

USED BELTS

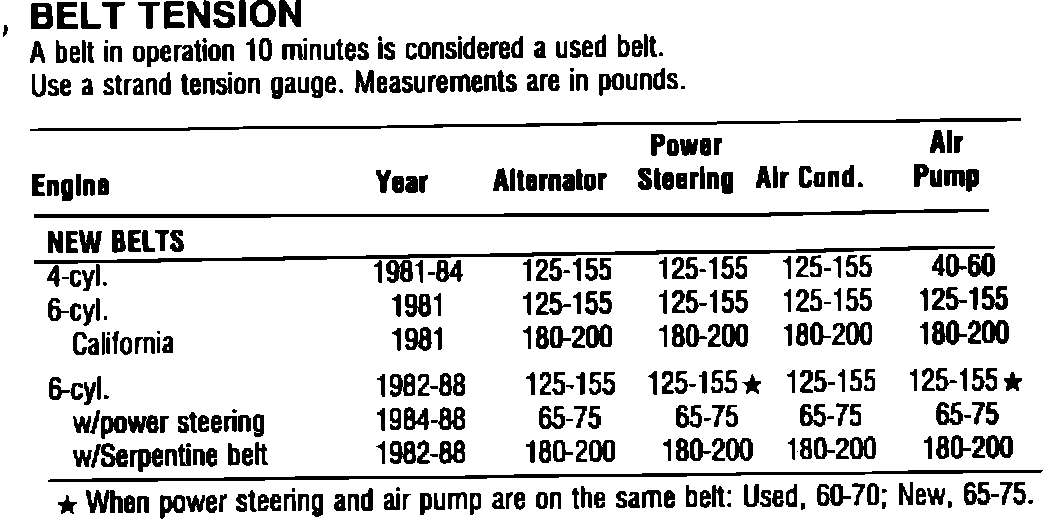

NEW BELTS
