Home >> Eagle >> 1983 >> Eagle L4-150 2.5L >> Repair and Diagnosis >> Body and Frame >> Seats >> Diagrams >> Electrical Diagrams

Electrical Diagrams

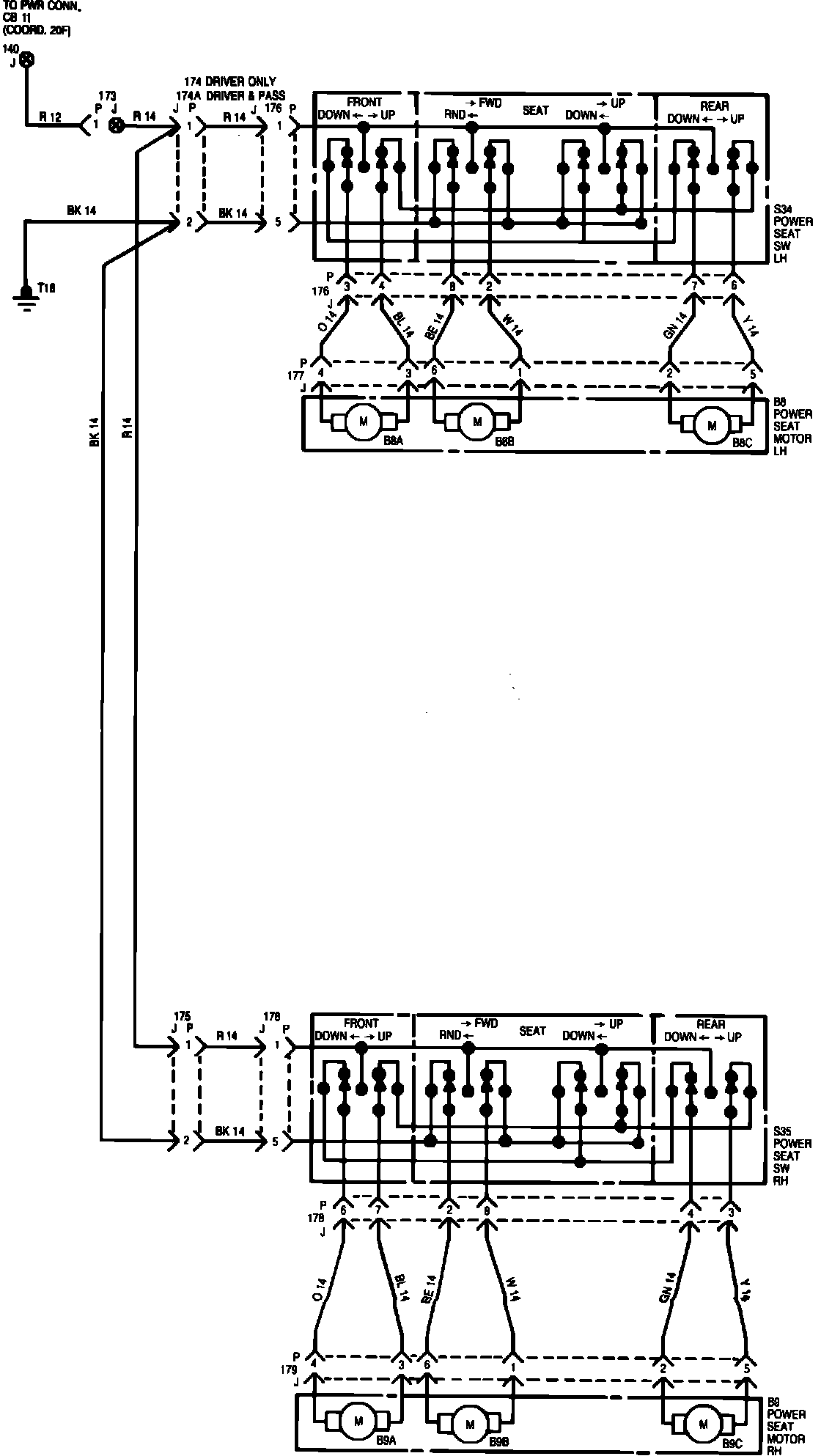

Fig. 24 Power Seat Wiring Circuit:
