Eagle L4-150 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Fuel Gauge
Fuel Gauge

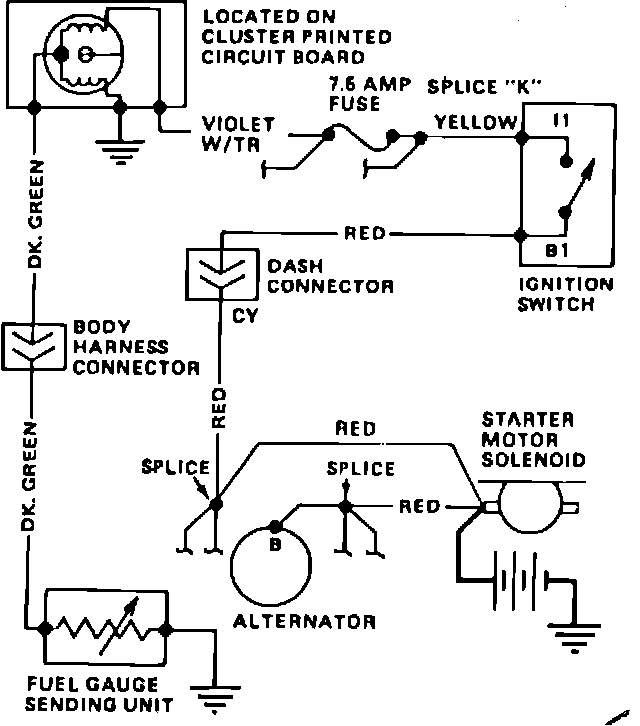

Fig. 16 Fuel Gauge Wiring Circuit:
