Operation CHARM
: Car repair manuals for everyone.
Home
>>
Eagle
>>
1983
>>
Eagle L4-150 2.5L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
Clearance and Design Specifications
Clearance and Design Specifications
Model 998 Specifications
The rear axle is a semi-floating type with a 19.2 cm (7 9/16 in) diameter
ring gear
.

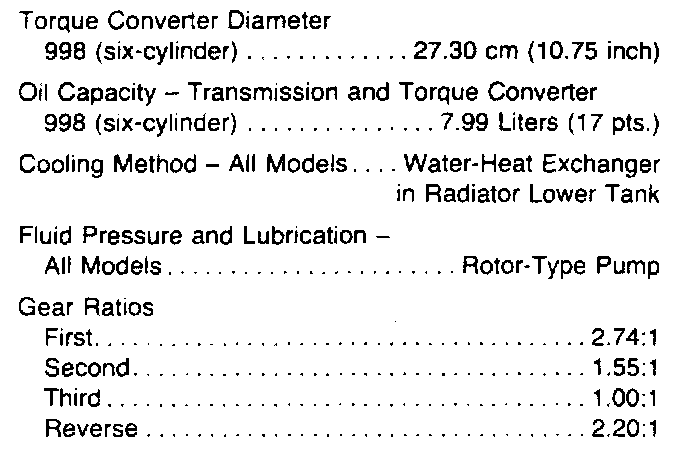

Fluid Capacity And Converter Size:

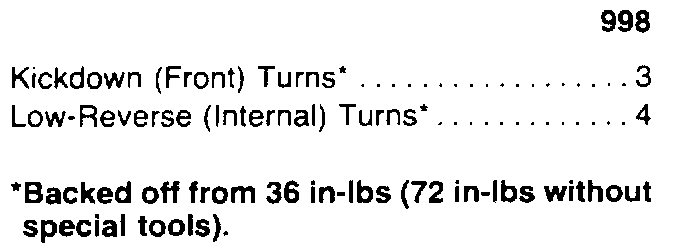

Band Adjustment:

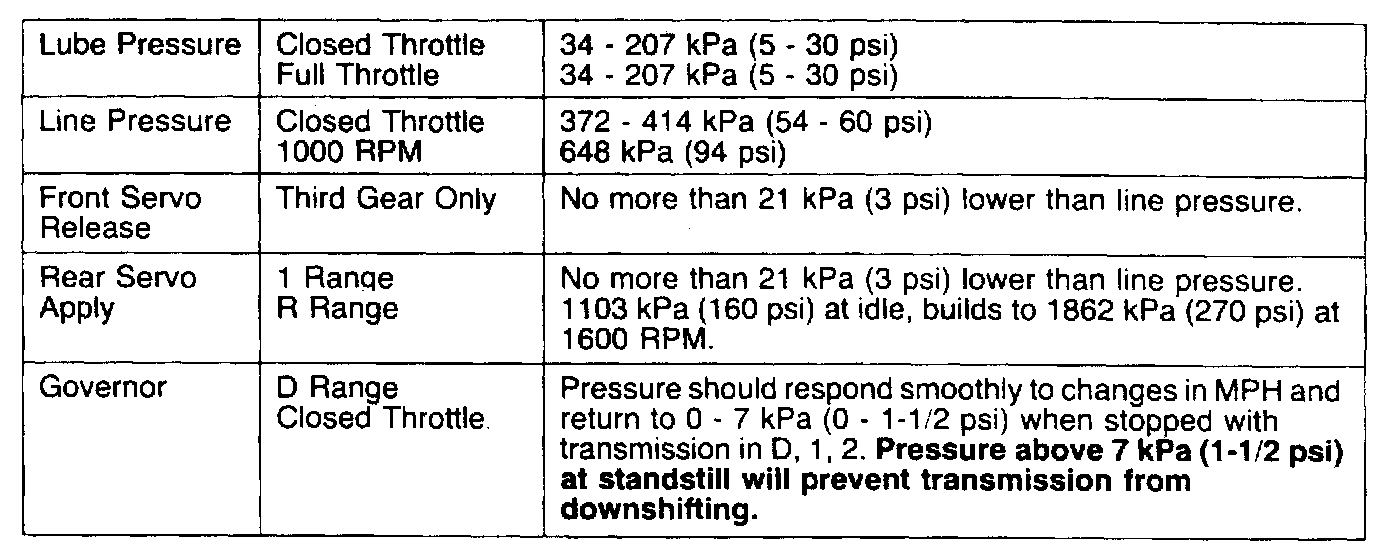

Hydraulic Pressure Specifications:
Stall Speed Specifications:
Axle Size And Ratio Identification:
