A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Test 1 - Operational Test
Test 1 - Operational Test

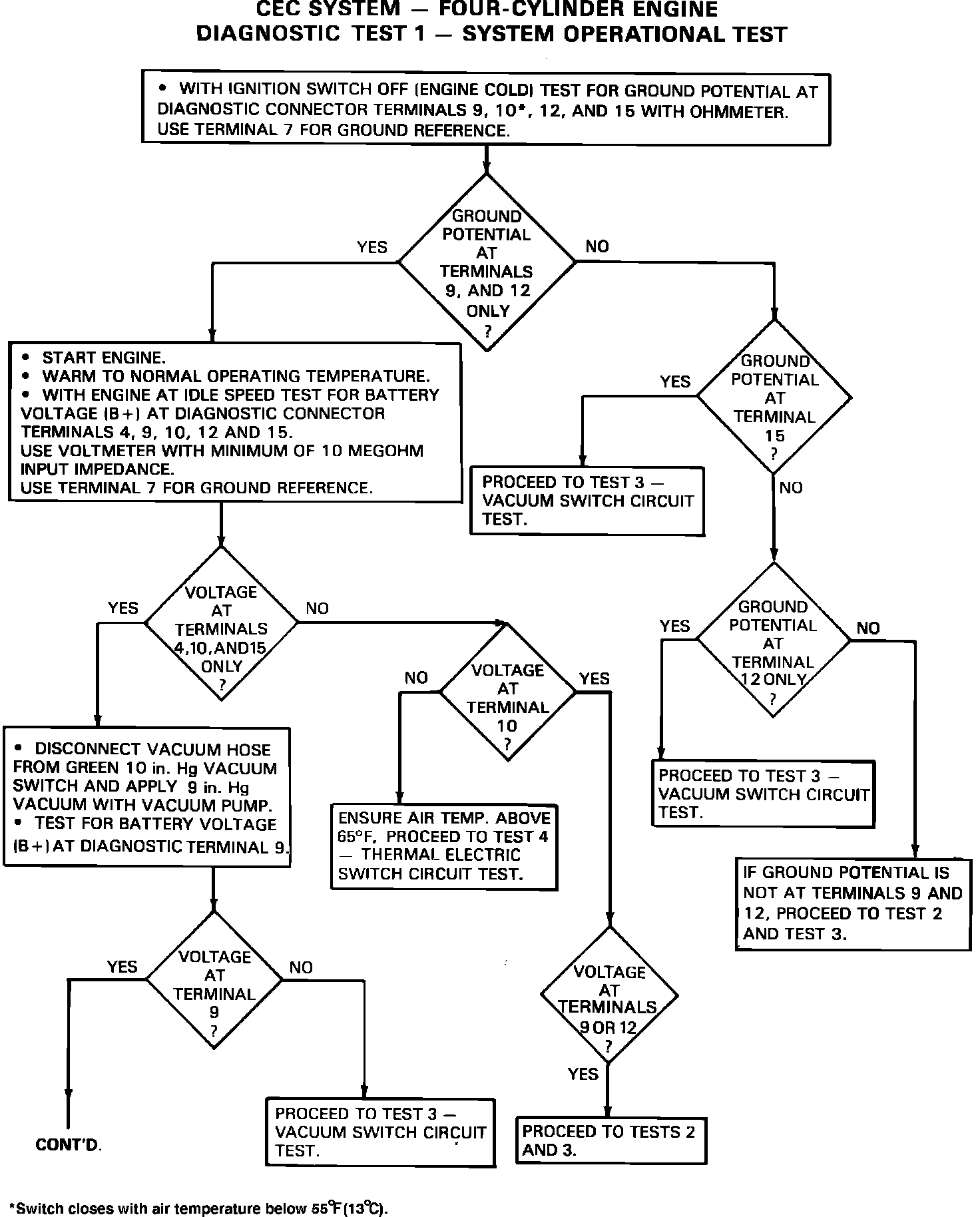

Diagnostic test 1 (Part 1 of 2):
Diagnostic test 1 (Part 1 of 2)
Diagnostic test 1 (Part 2 of 2):
Diagnostic test 1 (Part 2 of 2)
