Test 2 - Coolant Temperature Switch Test
Test 2 - Coolant Temperature Switch Test

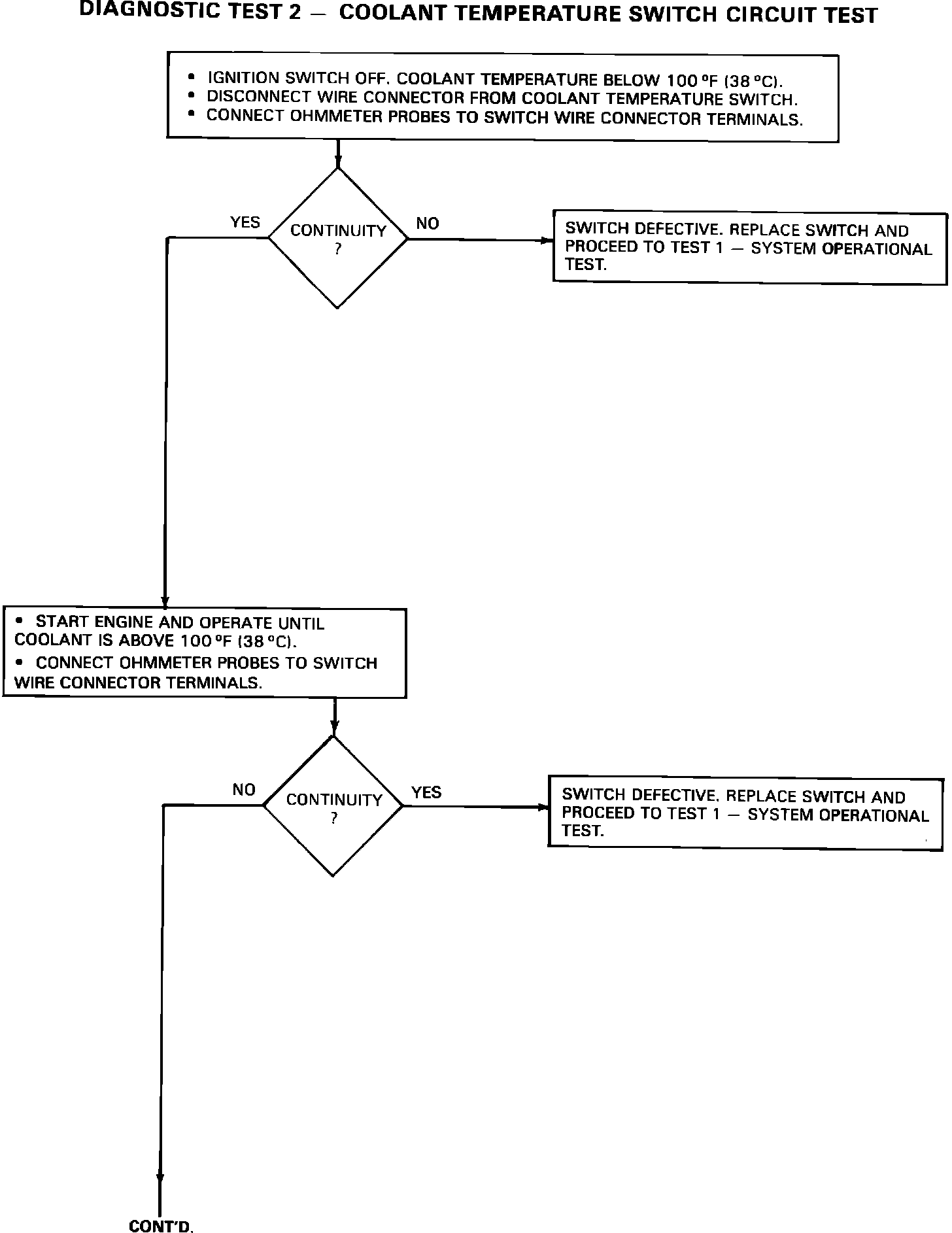

Diagnostic test 2 (Part 1 of 2):
Diagnostic test 2 (Part 1 of 2)

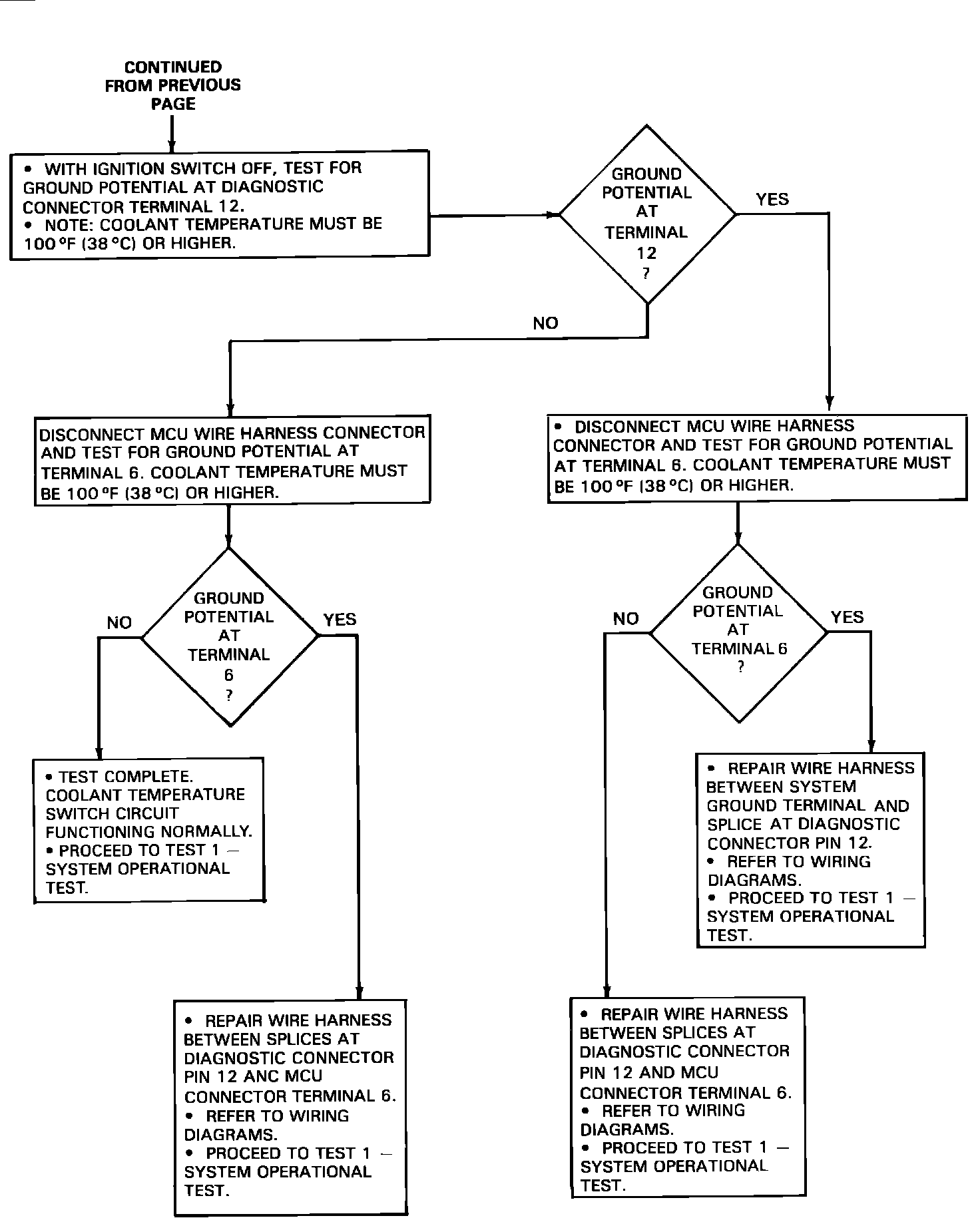

Diagnostic test 2 (Part 2 of 2):
Diagnostic test 2 (Part 2 of 2)
