Test 4 - Thermal Electric Switch (TES) Circuit Test
Test 4 - Thermal Electric Switch (TES) Circuit Test

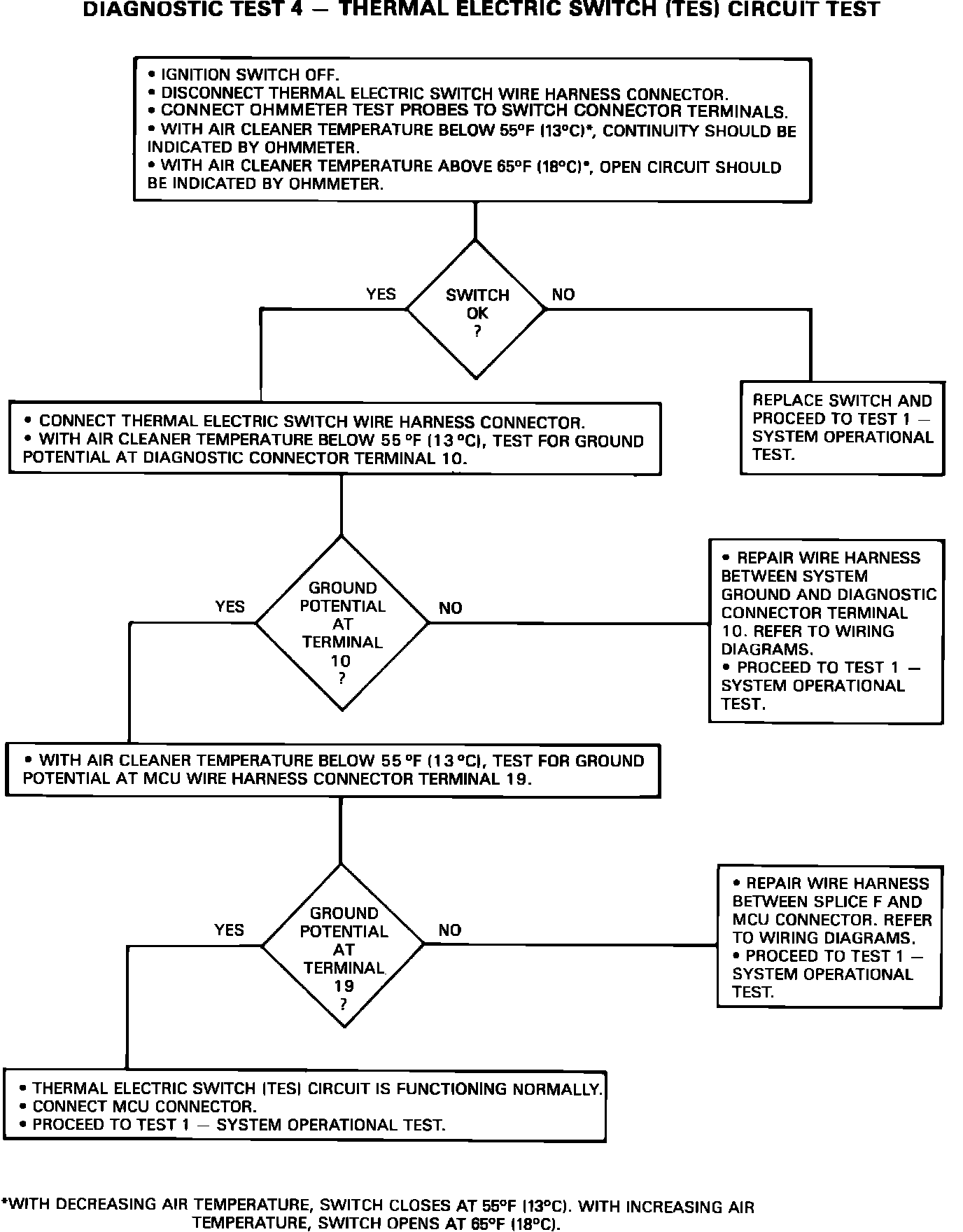

Diagnostic test 4:
