Home
>>
Eagle
>>
1983
>>
Eagle L4-151 2.5L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Test 6 - Mixture Control (MC) Solenoid Test
Test 6 - Mixture Control (MC) Solenoid Test

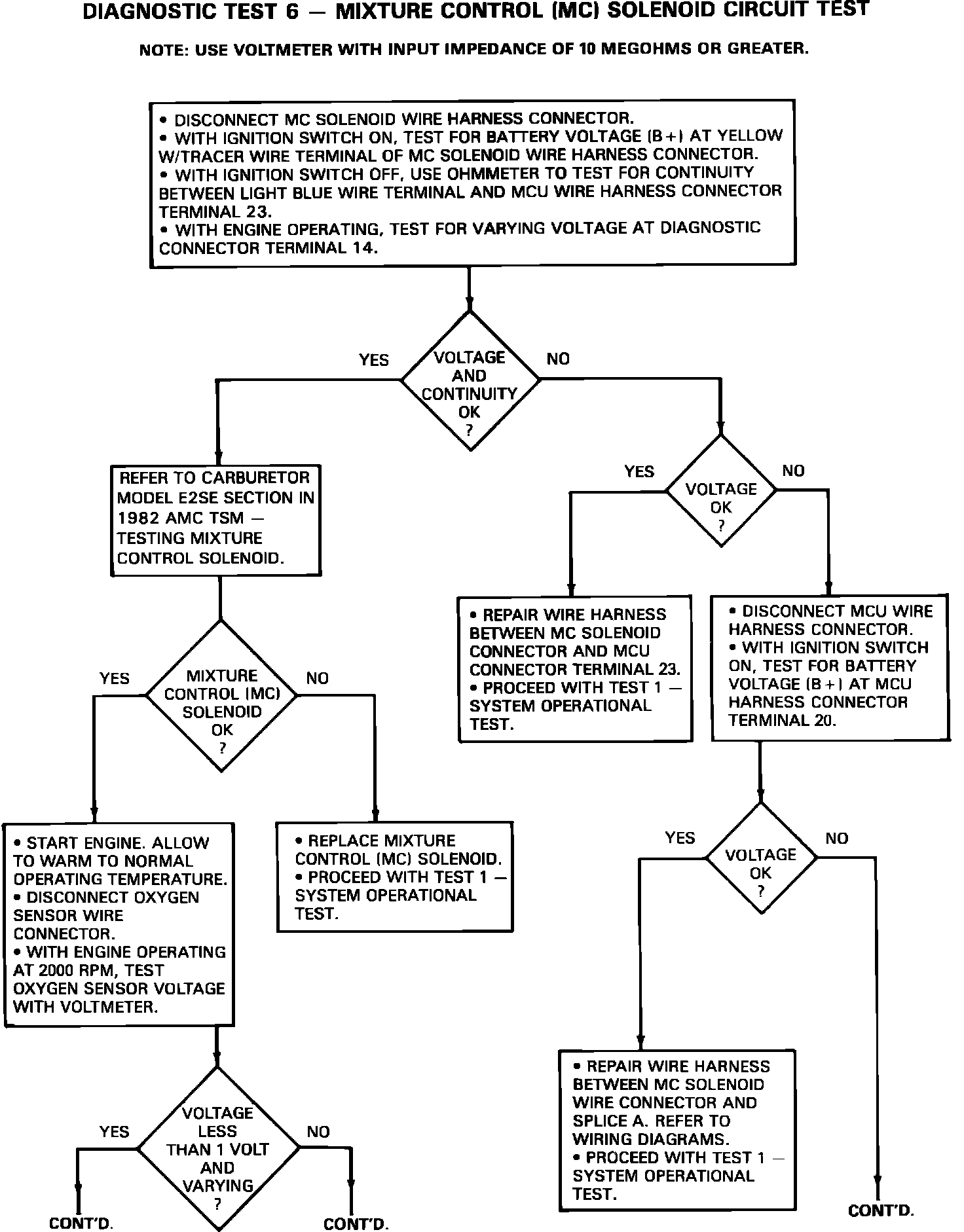

Diagnostic test 6 (Part 1 of 2):
Diagnostic test 6 (Part 1 of 2)

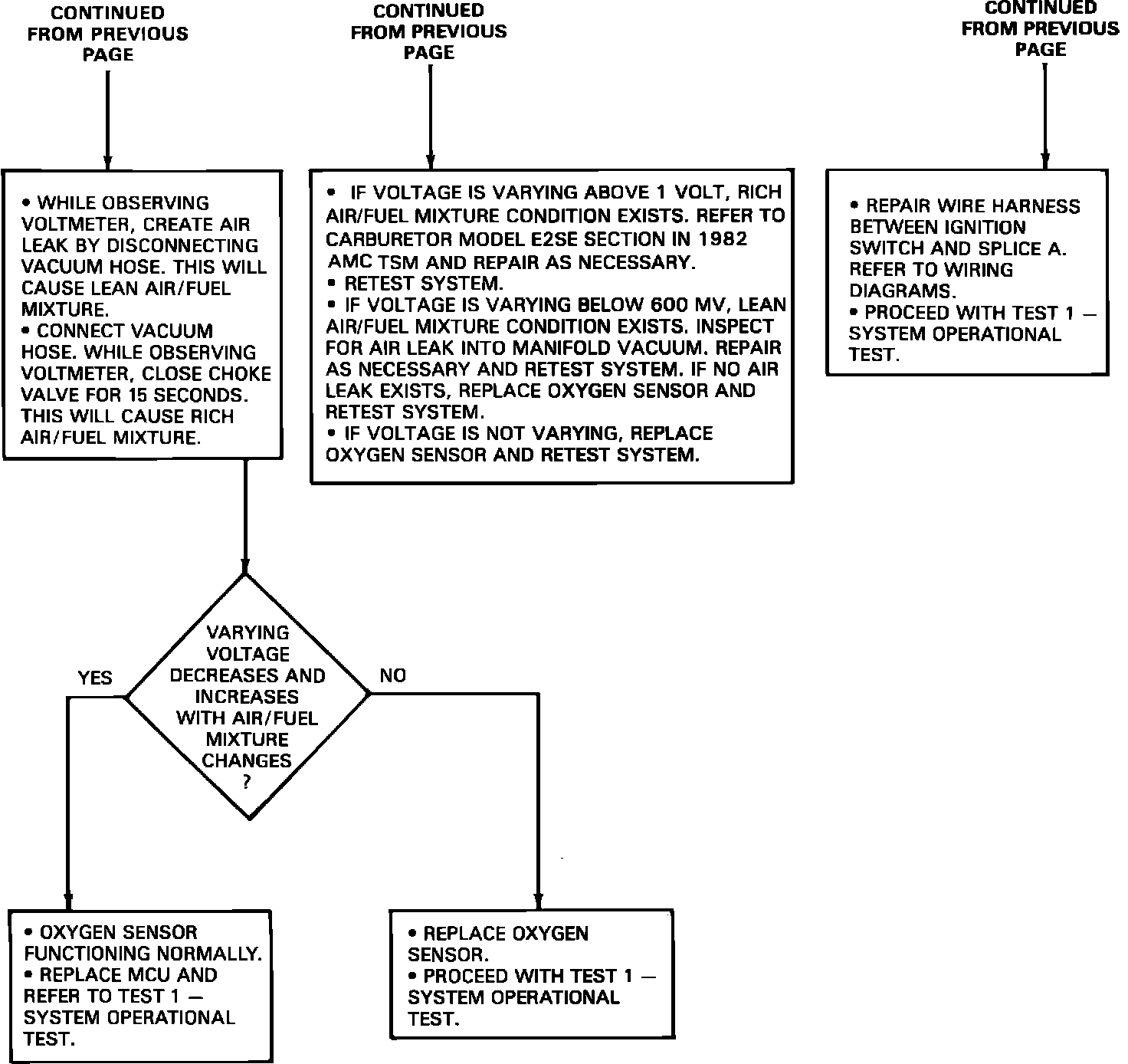

Diagnostic test 6 (Part 2 of 2):
Diagnostic test 6 (Part 2 of 2)
