Electrical Diagrams

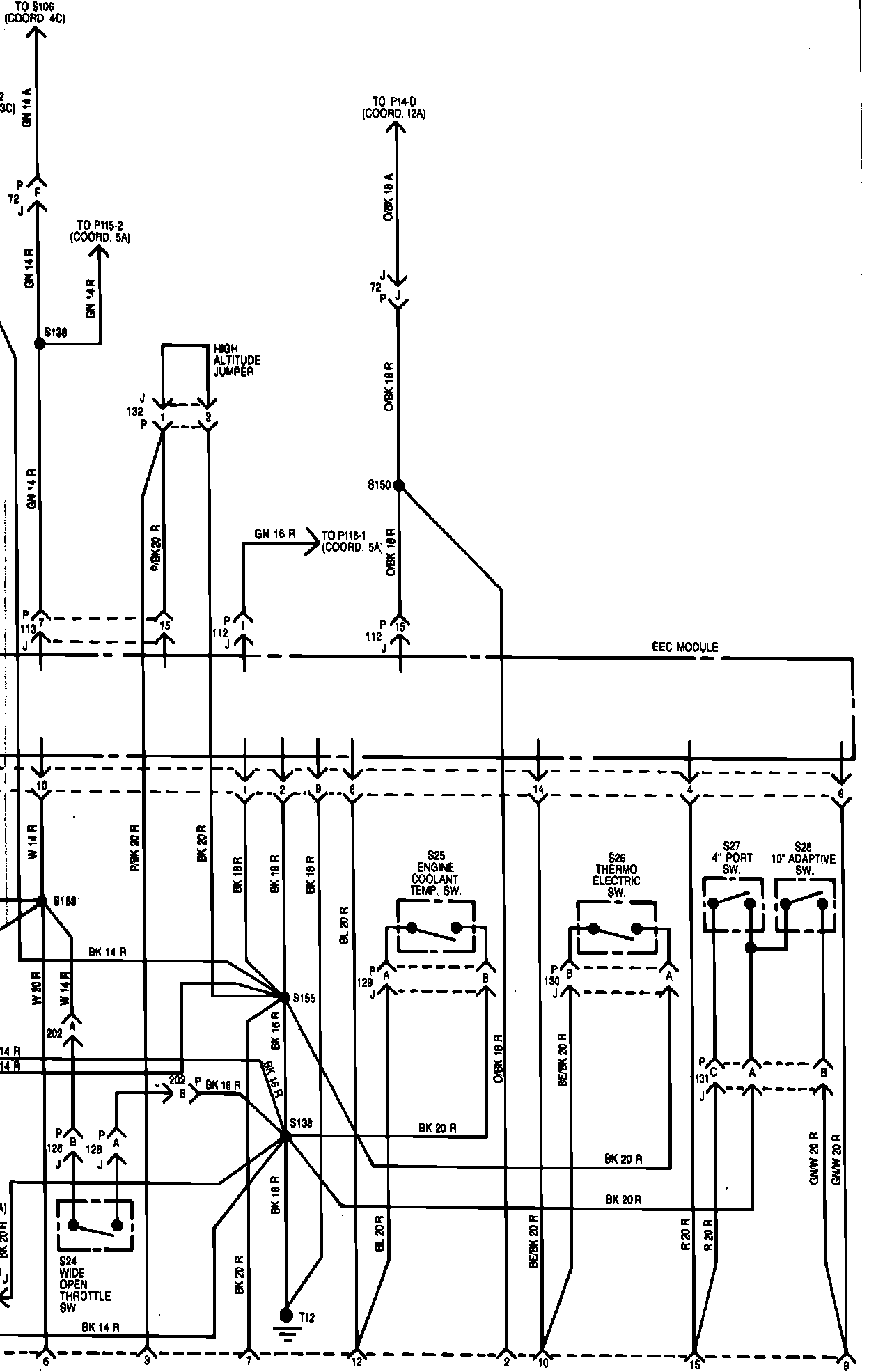

Fig. 11 EEC Control Module Wiring Circuit (Part 1 Of 2). 4 Cylinder Engine:

Fig. 11 EEC Control Module Wiring Circuit (Part 2 Of 2). 4 Cylinder Engine:

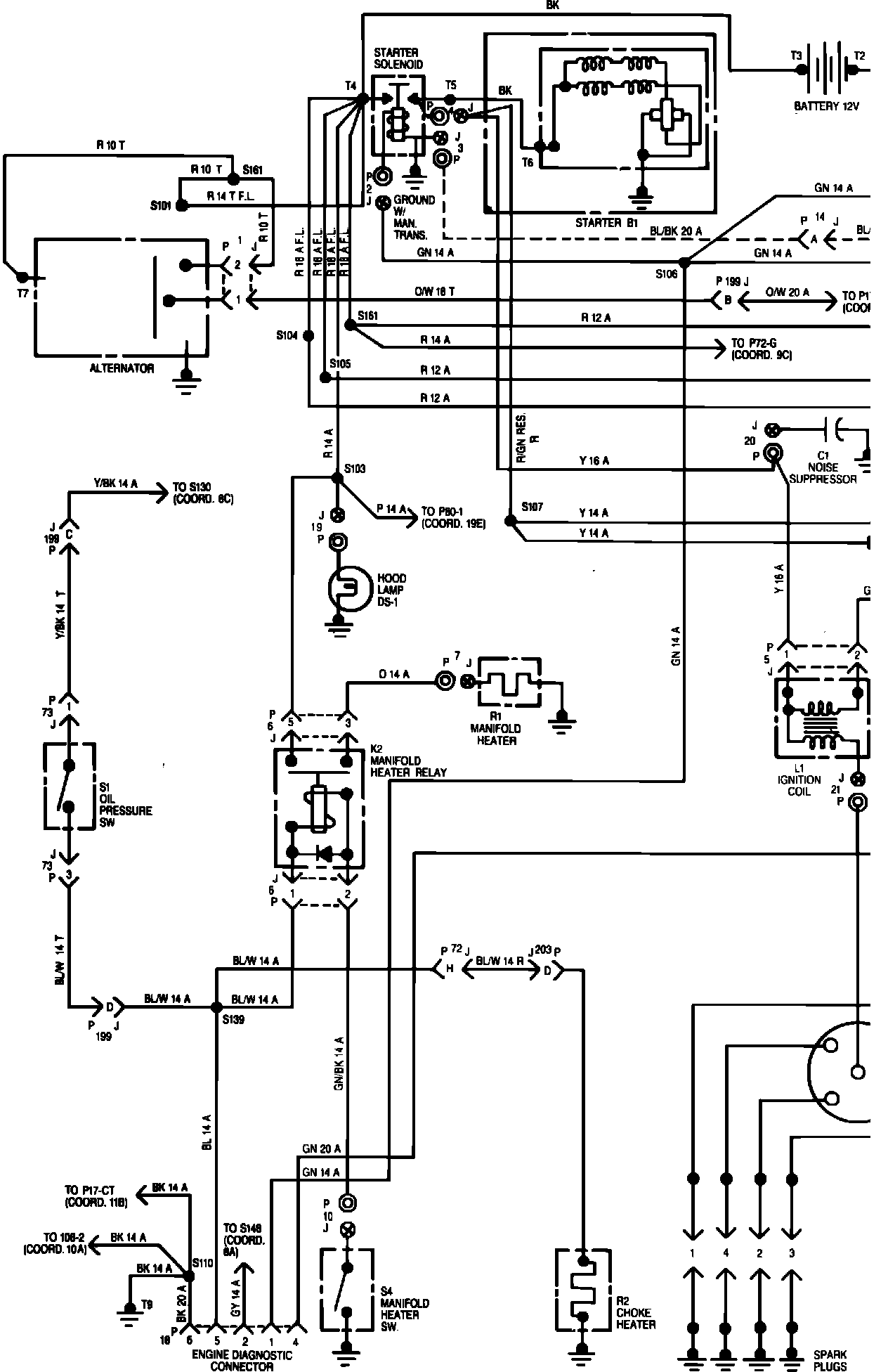

Fig. 14 Engine Electrical Wiring Circuit (Part 1 Of 2). 4 Cylinder Engine:

Fig. 14 Engine Electrical Wiring Circuit (Part 2 Of 2). 4 Cylinder Engine:
