Transfer Case: Diagrams

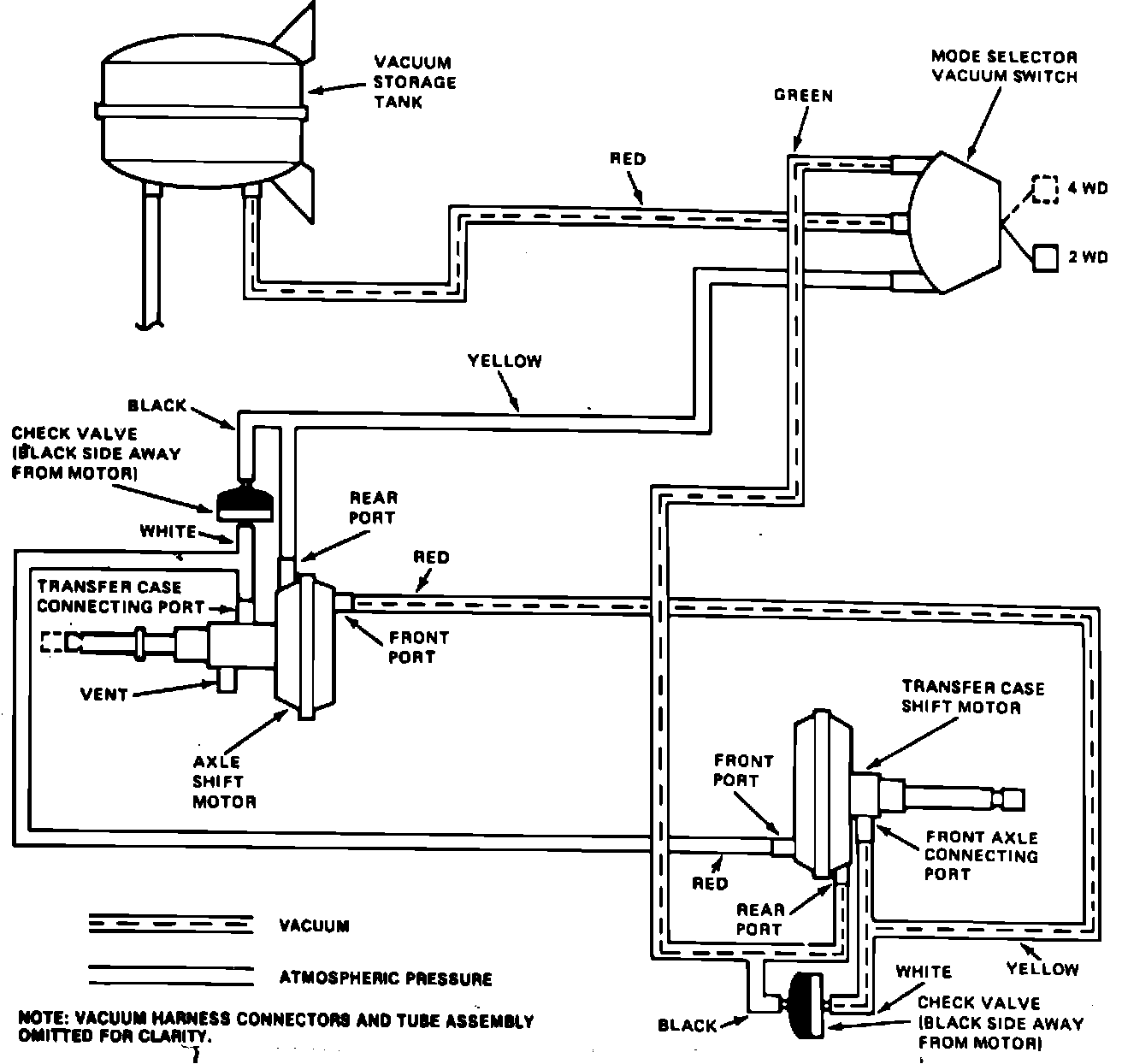

Front Axle Vacuum Circuit. 2WD Mode:

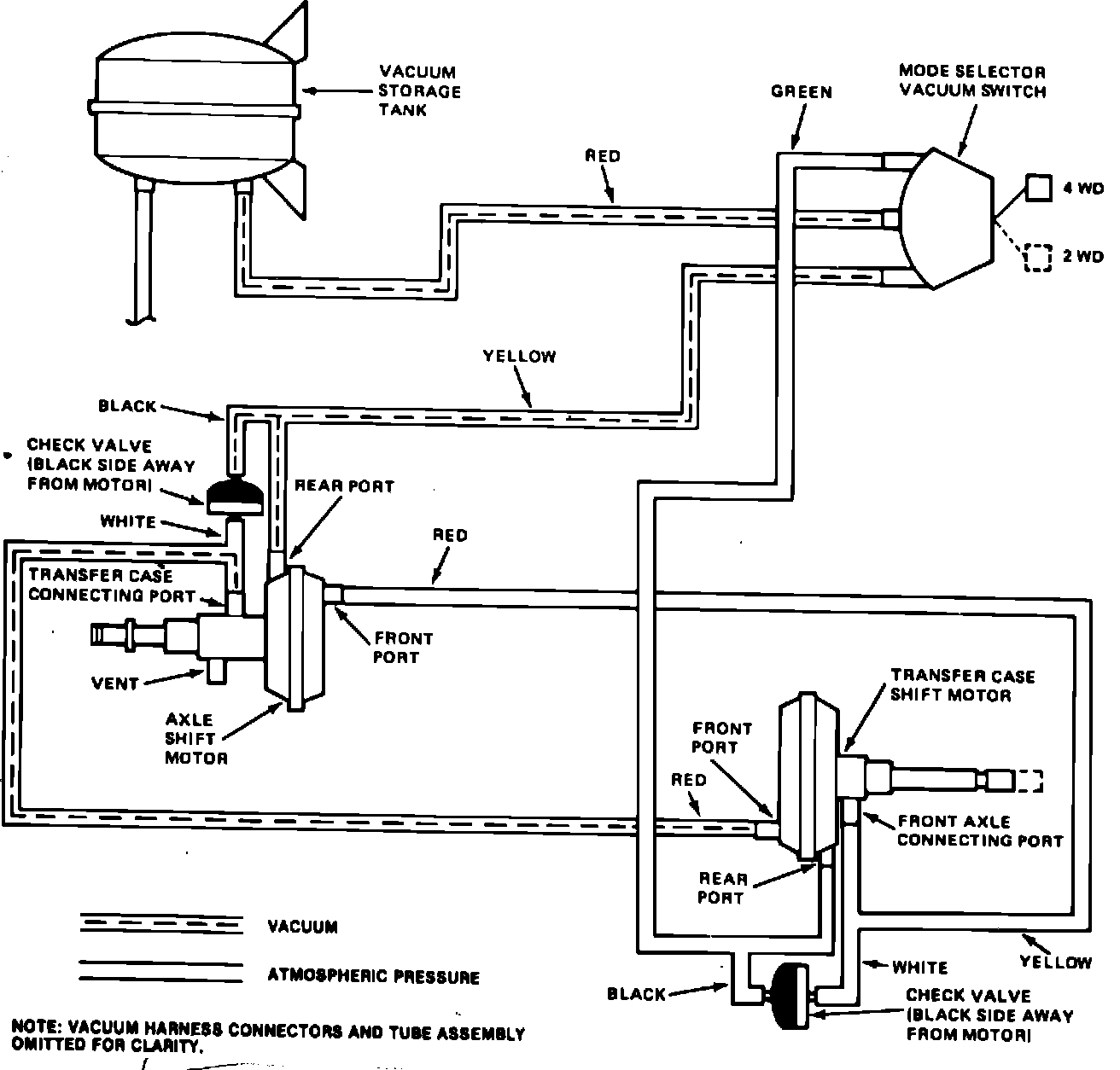

Fig. 14 Front Axle Vacuum Circuit. 4WD Mode:
