Home >> Eagle >> 1983 >> Eagle L6-258 4.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Door Locks >> Part 1 of 2

Part 1 of 2

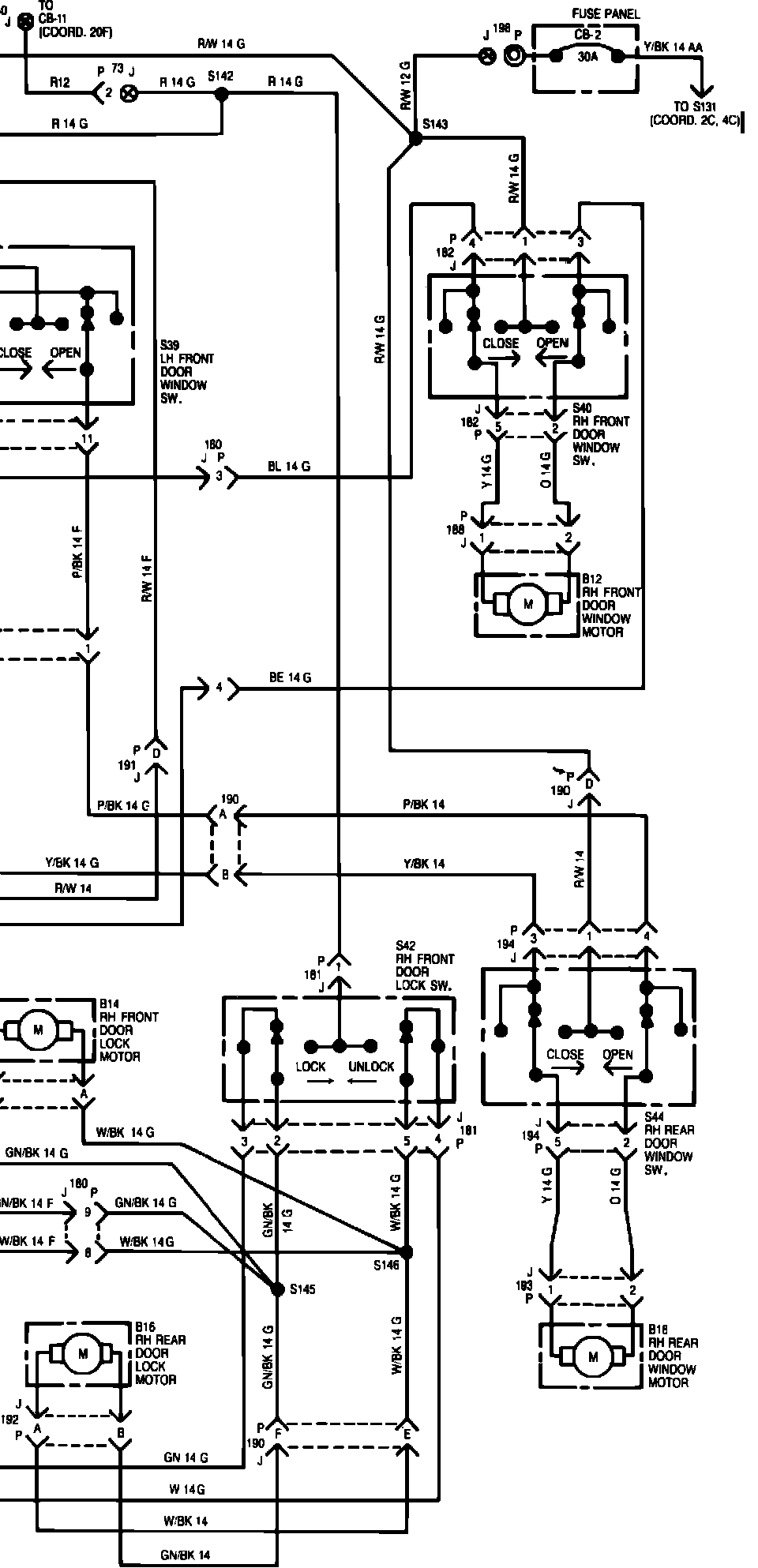

Fig. 25 Power Window & Door Lock Wiring Circuit (Part 1 Of 2):

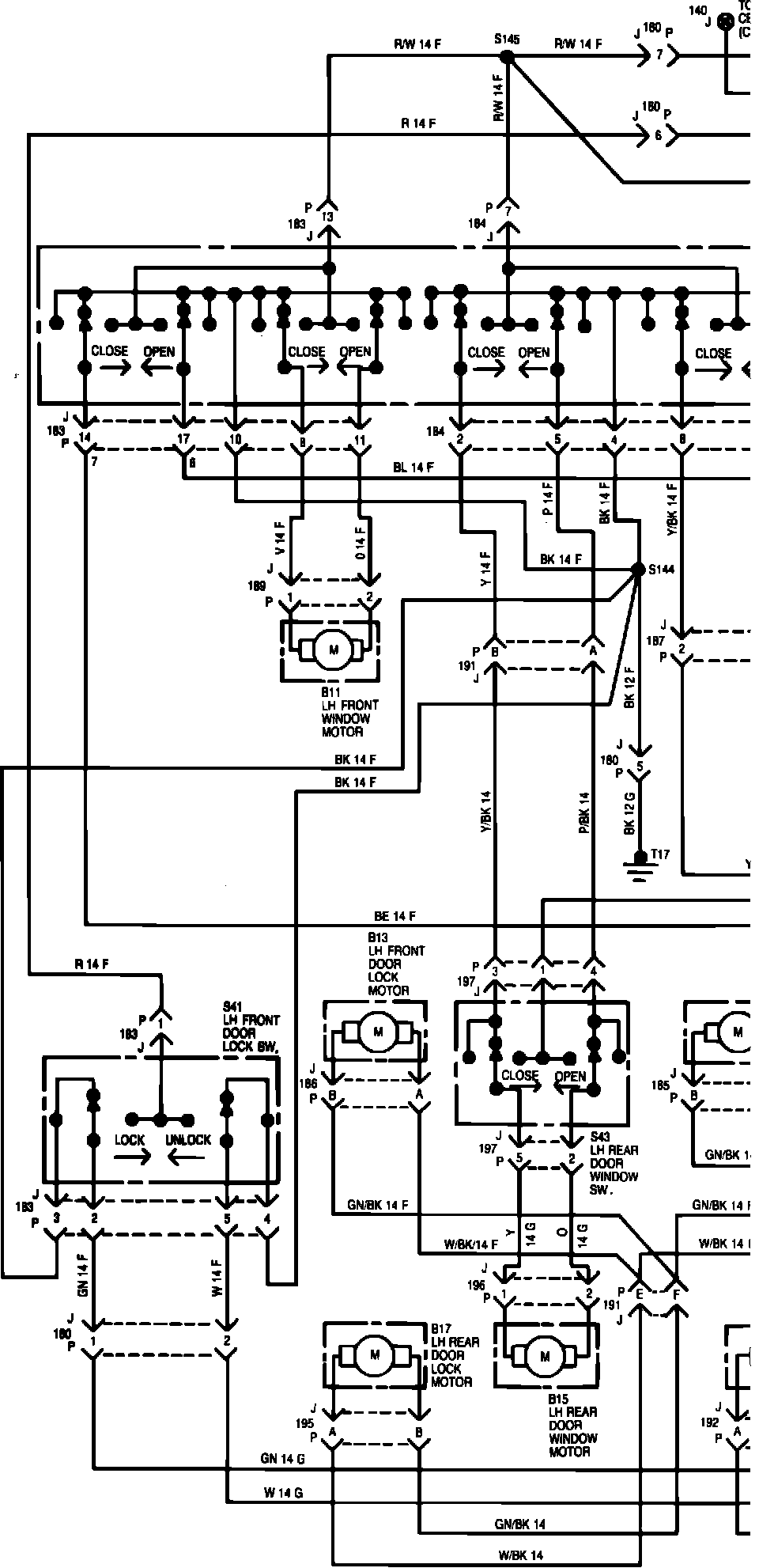

Fig. 25 Power Window & Door Lock Wiring Circuit (Part 2 Of 2):
