Torque Specifications

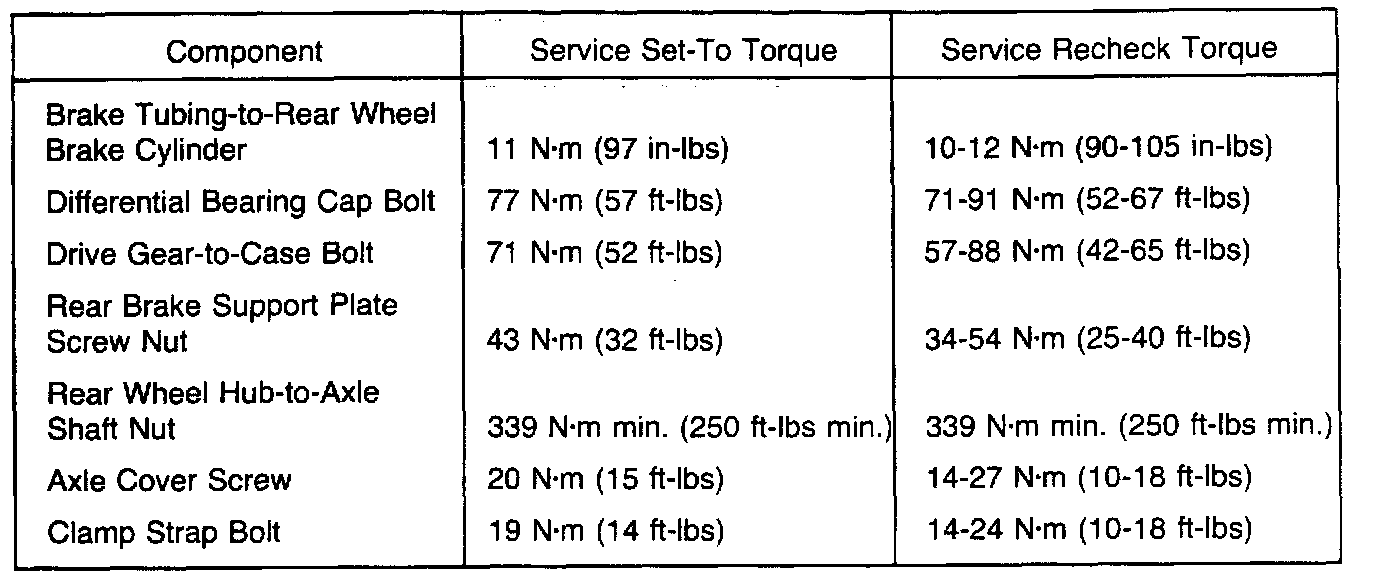

Front and Rear Differential Torque Specification

Front Differential

Torque Specifications, Front:

Rear Differential

Torque Specifications, Rear:
