Home
>>
Eagle
>>
1988
>>
Medallion L4-2165cc 2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
With Intermittent Wiper
With Intermittent Wiper

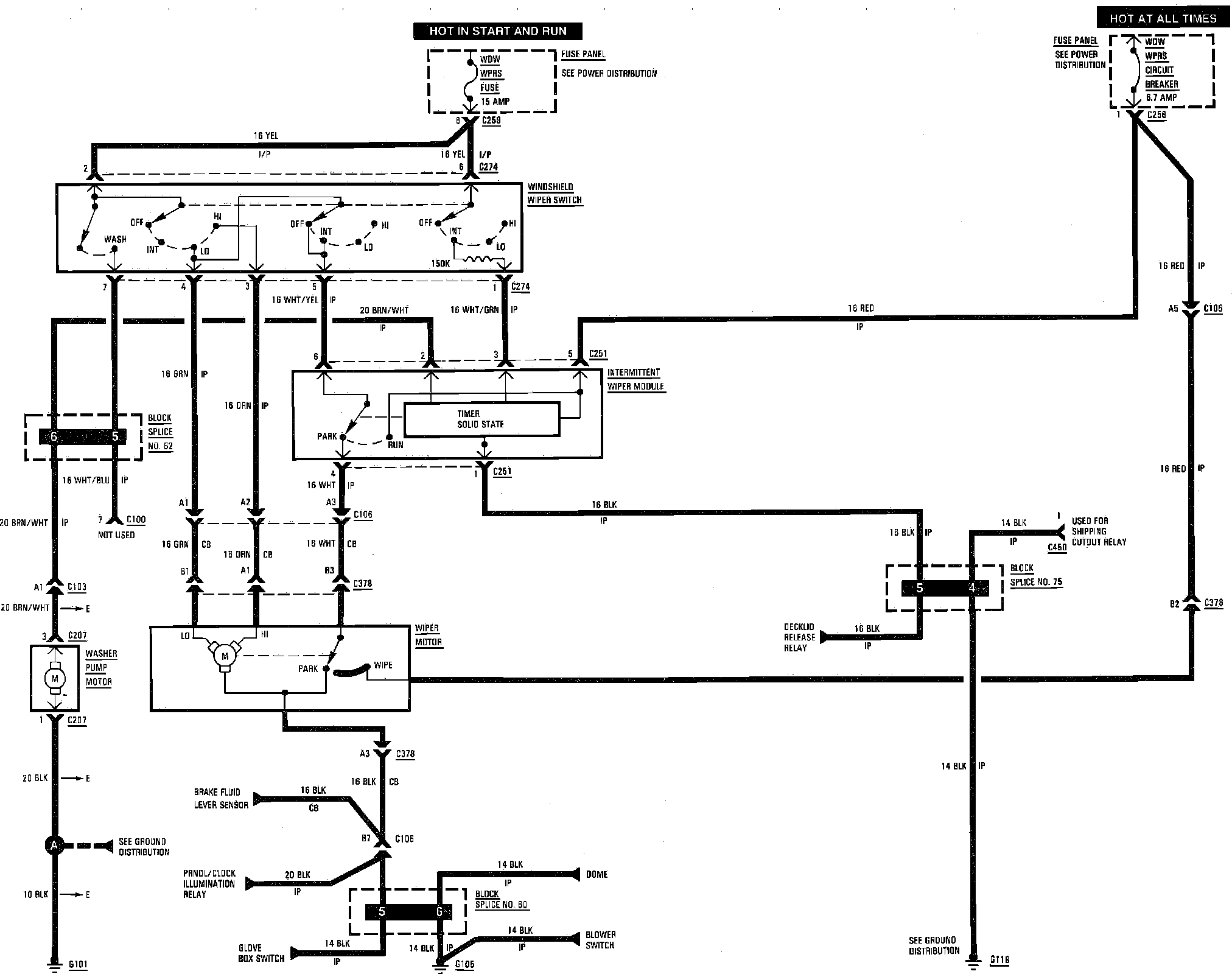

Wiper & Waher - Intermittent Wiring Circuit:
