Home >> Eagle >> 1988 >> Medallion L4-2165cc 2.2L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> System Schematics

System Schematics

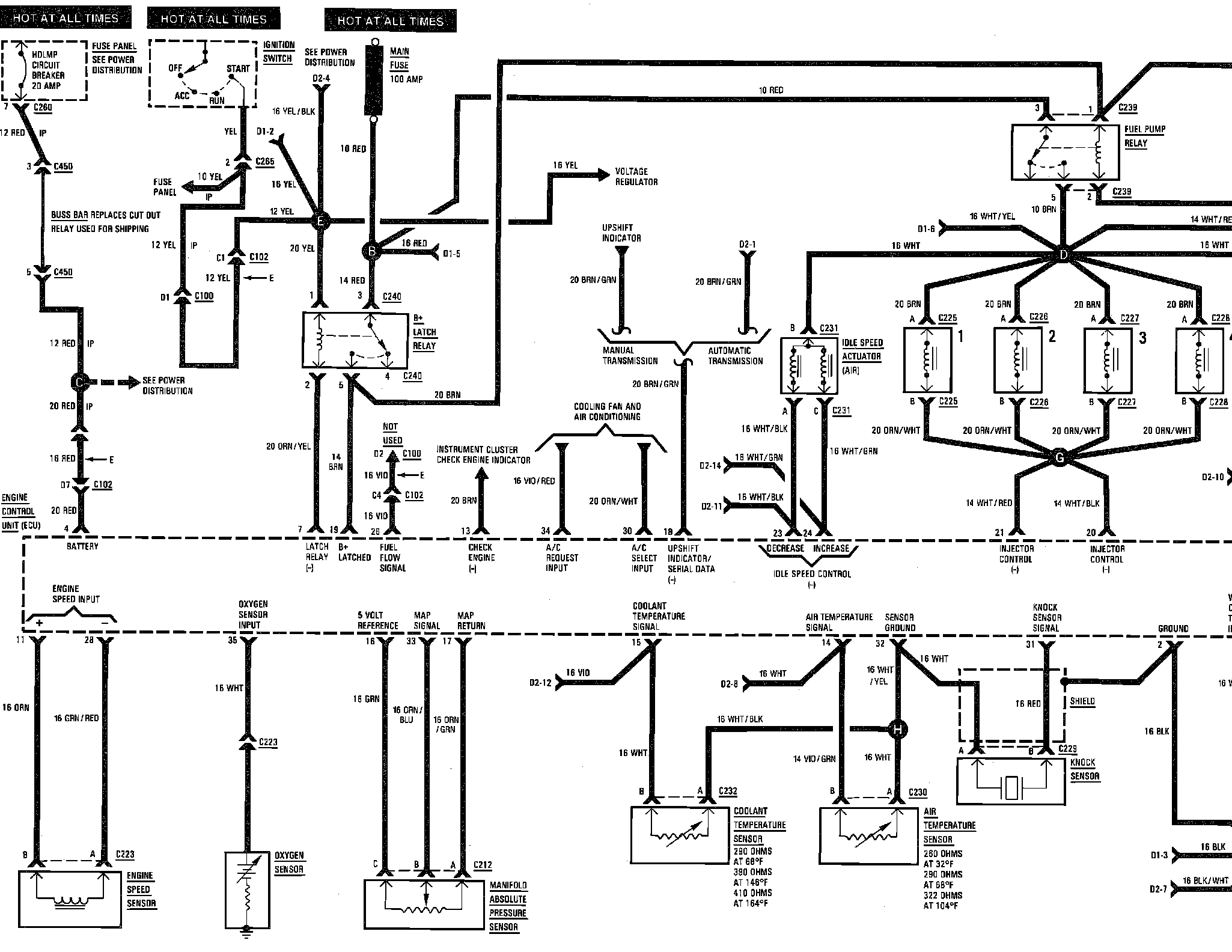

�Bd2Fuel Injection Engine Controls Wiring Circuit:
